Echo SRM-200BE Brushcutter

Model: SRM-200BE

Back To Assemblies

Save Part Not Listed?
product name

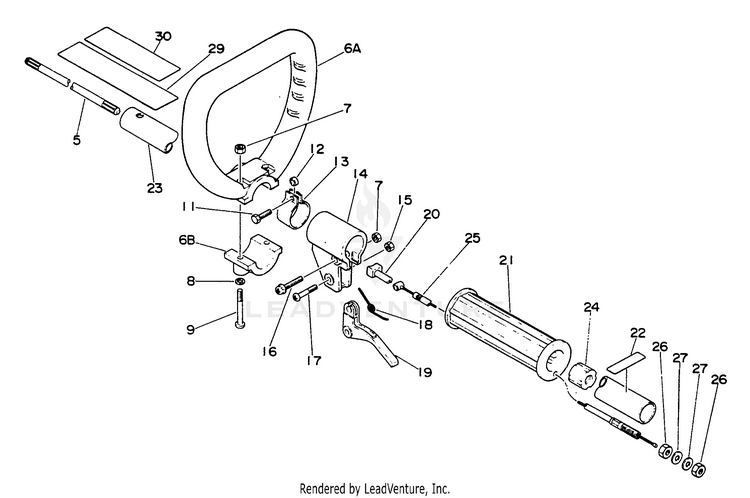

Driveshaft, Handles, Throttle

...
...
5
DRIVESHAFT ECH-61001108930
...
6
HANDLE ASSY - LOOP Includes items 7 thru 9 ECH-35120108930
...
6A
HANDLE ASSY - LOOP See Ref No. 6, Handle set, P/N 35120108930 ECH-35120108930
...
6B
HANDLE ASSY - LOOP See Ref No. 6, Handle set, P\N 35120108930 ECH-35120108930
...
7
NUT M5 ECH-90050000005
...
8
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
9
SCREW 5x40 ECH-90022005040
...
7
NUT M5 ECH-90050000005
...
11
BOLT 5x18 ECH-90010005018
...
12
SPACER ECH-69901203330
...
13
HOOK ECH-30120708930
...
14
BRACKET, TRIGGER ECH-17802408930
...
15
NUT, LOCK M5 ECH-90056000005
...
16
SCREW 5x30 ECH-90024205030
...
17
SCREW ECH-17811005330
...
18
SPRING, THROTTLE ECH-17804306930
...
19
TRIGGER, THROTTLE ECH-C450000060
...
20
GUIDE, CABLE ECH-17804805630
...
21
GRIP ECH-35101208930
...
22
LABEL - ALIGNMENT ECH-89015204930
...
23
PIPE, MAIN Includes ITEM 24 ECH-61020622830
...
24
STOPPER ECH-61010508930
...
25
CABLE, THROTTLE ECH-17800108931
...
26
NUT M6 ECH-90050200006
...
27
WASHER 6.5x11.5x0.8 ECH-90060000006
...
29
LABEL ECH-89016044730
...
30
LABEL ECH-89017709130
