Echo SRM-1500A Brushcutter

Model: SRM-1500A

Back To Assemblies

Save Part Not Listed?
product name

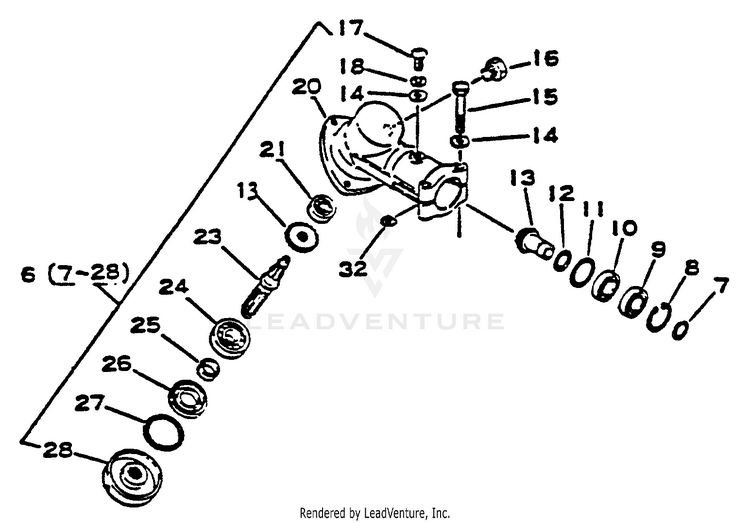

Gear Case

...
...
6
GEAR CASE ASSY ECH-61040044630
...
7
RING, SNAP 10 ECH-90070600010
...
8
RING, SNAP 22 ECH-90070200022
...
9
BEARING, BALL 6900Z ECH-90085806900
...
10
BEARING, BALL 6900 ECH-90085506900
...
11
WASHER ECH-61031722830
...
12
WASHER ECH-61031622830
...
13
GEAR SET ECH-61030042330
...
14
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
15
BOLT 5x35 SP ECH-90010005035
...
16
BOLT 8x8 SP ECH-90010008008
...
17
SCREW 5x10 ECH-90022005010
...
18
WASHER, SPRING 5 ECH-90060500005
...
20
CASE, GEAR ECH-61041040830
...
21
BEARING, BALL 626 ECH-90081000626
...
23
SHAFT, GEAR ECH-61031040830
...
24
BEARING, BALL 6000 ECH-90080006000
...
25
SPACER ECH-61031522830
...
26
SEAL, OIL ECH-61041322830
...
27
RING, SNAP 26 ECH-90070200026
...
28
PLATE, ADAPTOR - UPPER ECH-61031344630
...
32
D-WASHER ECH-61023904130
