Echo SRM-1500A Brushcutter

Model: SRM-1500A

Back To Assemblies

Save Part Not Listed?
product name

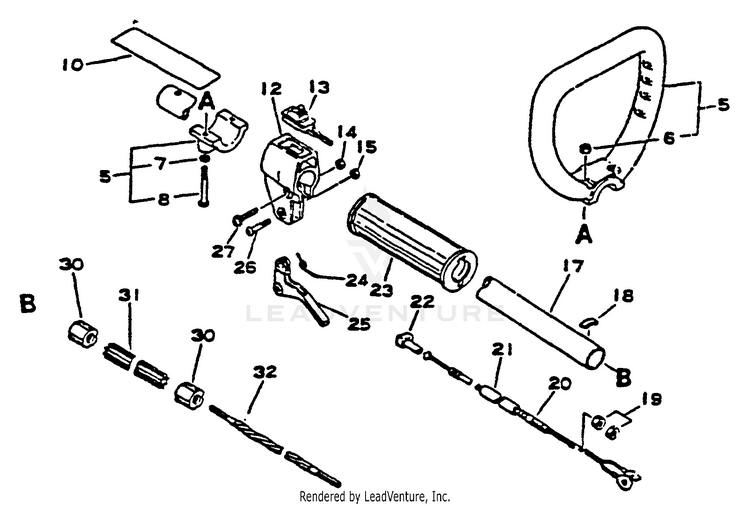

Driveshaft, Handles, Ignition Switch, Throttle

...
...
5
HANDLE ASSY - LOOP ECH-35120108930
...
6
NUT M5 ECH-90050000005
...
7
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
8
SCREW 5x40 ECH-90022005040
...
10
LABEL - CAUTION ECH-89016049730
...
12
BRACKET, THROTTLE CONTROL ECH-17802449230
...
13
SWITCH ASSY, ON-OFF ECH-16340155631
...
14
NUT M5 ECH-90050000005
...
15
NUT, LOCK M5 ECH-90056000005
...
17
PIPE, MAIN ECH-61021042330
...
18
LABEL - ALIGNMENT ECH-89015204930
...
19
NUT M6 ECH-90050200006
...
20
CABLE, THROTTLE ECH-17800108931
...
21
PIPE ECH-17812724030
...
22
GUIDE, CABLE ECH-17804805630
...
23
GRIP ECH-35101244730
...
24
SPRING, THROTTLE ECH-17804306930
...
25
TRIGGER, THROTTLE ECH-C450000060
...
26
SCREW ECH-17811005330
...
27
SCREW 5x30 ECH-90024205030
...
30
STOPPER ECH-61024644730
...
31
LINER - FLEXIBLE ECH-61021744630
...
32
SHAFT, FLEX, 4 LAYER 55.98 IN. ECH-61001351030
