product name

Echo SRM-1500A Brushcutter

Model: SRM-1500A

Back To Assemblies

Save Part Not Listed?
product name

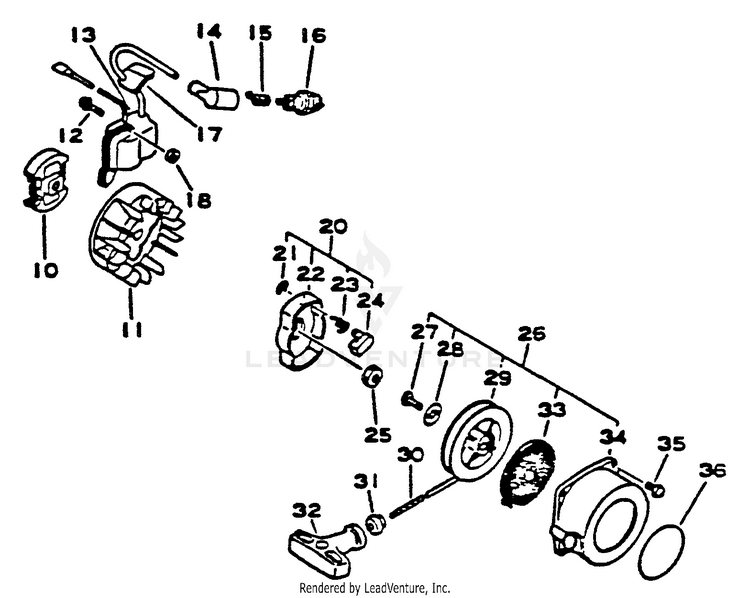

Clutch, Ignition, Starter

...
...
10
CLUTCH ASSY ECH-17500056831
...
11
FLYWHEEL ECH-15680144731
...
12
SCREW 4x22 ECH-90023804022
...
13
COIL, IGNITION ECH-15660144732
...
14
CAP, SPARK PLUG ECH-15901201620
...
15
TERMINAL, SPARK PLUG ECH-15901103432
...
16
SPARK PLUG - BPMR7A CANADIAN MODELS USE SPARK PLUG (BPMR-7A) P/N 15901010230 ECH-15901010230
...
17
GROMMET ECH-15011242030
...
18
WASHER ECH-15011709130
...
20
PAWL ASSY, STARTER ECH-17720212220
...
21
RING, RETAINING - 6 ECH-90070000006
...
22
PAWL ASSY, STARTER ECH-17720212220
...
23
SPRING, RETURN ECH-17723412220
...
24
PAWL, STARTER ECH-17721842030
...
25
NUT 8x1.25 ECH-90050200008
...
26
STARTER ASSY ECH-17720054130
...
27
SCREW ECH-17723640630
...
28
WASHER 5 ECH-V303000230
...
29
REEL, ROPE ECH-17721544430
...
30
ROPE, STARTER RePower BULK OPTION: 99944440000 ECH-P022006800
...
31
GUIDE, ROPE ECH-17722742030
...
32
GRIP, STARTER ECH-17722806530
...
33
SPRING, RECOIL ECH-P022019680
...
34
CASE, RECOIL STARTER ECH-17723242032
...
35
SCREW 4x16 ECH-90023804016
...
36
LABEL - ECHO ECH-X502000320
