Echo SRM-1500A Brushcutter

Model: SRM-1500A

Back To Assemblies

Save Part Not Listed?
product name

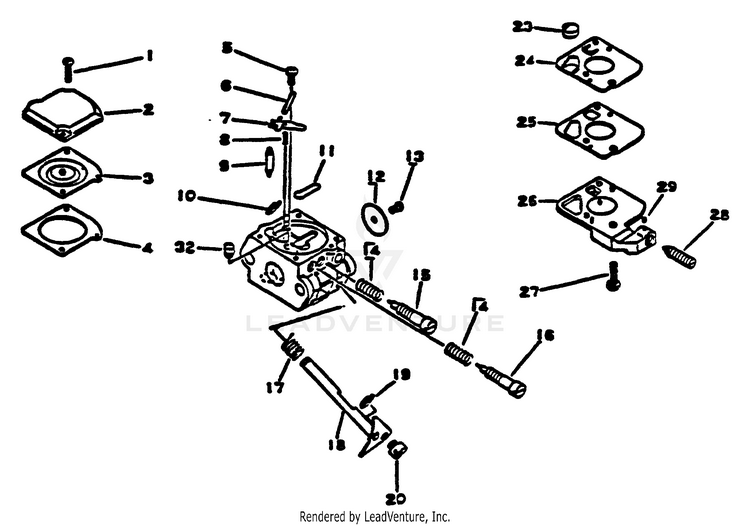

Carburetor

...
...
xx
CARBURETOR ECH-12520044733
...
1
SCREW ECH-12534413931
...
2
COVER, METERING DIAPHRAGM ECH-12534252130
...
3
DIAPHRAGM Use Repair Kit P/N 12530242030 and Gasket/Diaph. Kit P/N 12530342030 ECH---
...
4
GASKET, METERING Use Repair Kit P/N 12530242030 and Gasket/Diaph. Kit P/N 12530342030 ECH---
...
5
SCREW ECH-12533942030
...
6
PIN, METERING LEVER Use Repair Kit P/N 12530242030 ECH---
...
7
LEVER, METERING Use Repair Kit P/N 12530242030 ECH---
...
8
SPRING Use Repair Kit P/N 12530242030 ECH---
...
9
VALVE, NEEDLE Use Repair Kit P/N 12530242030 ECH---
...
10
E-RING ECH-12532715130
...
11
PLUG, WELCH Use Repair Kit P/N 12530242030 ECH---
...
12
VALVE, THROTTLE ECH-12531642030
...
13
SCREW ECH-12531413930
...
14
SPRING, COIL ECH-125319-42030
...
15
NEEDLE, HIGH SPEED ECH-12532042030
...
16
NEEDLE, IDLE ECH-125318-42030
...
17
SPRING, THROTTLE RETURN ECH-12531342030
...
18
SHAFT, THROTTLE ECH-12531742030
...
19
CLIP ECH-125327-13930
...
20
SWIVEL ECH-12537242030
...
23
STRAINER Use Repair Kit P/N 12530242030 ECH---
...
24
DIAPHRAGM, PUMP Use Repair Kit P/N 12530242030 and Gasket/Diaph. Kit P/N 12530342030 ECH---
...
25
GASKET, PUMP Use Repair Kit P/N 12530242030 and Gasket/Diaph. Kit P/N 12530342030 ECH---
...
26
COVER, PUMP ECH-12532442030
...
27
SCREW ECH-12531042030
...
28
PIN, METERING LEVER ECH-12533813930
...
29
PIECE, FRICTION ECH-12537813930
...
32
NOZZLE, CHECK VALVE ECH-12537642030
