Echo SRM-1500A Brushcutter

Model: SRM-1500A

Back To Assemblies

Save Part Not Listed?
product name

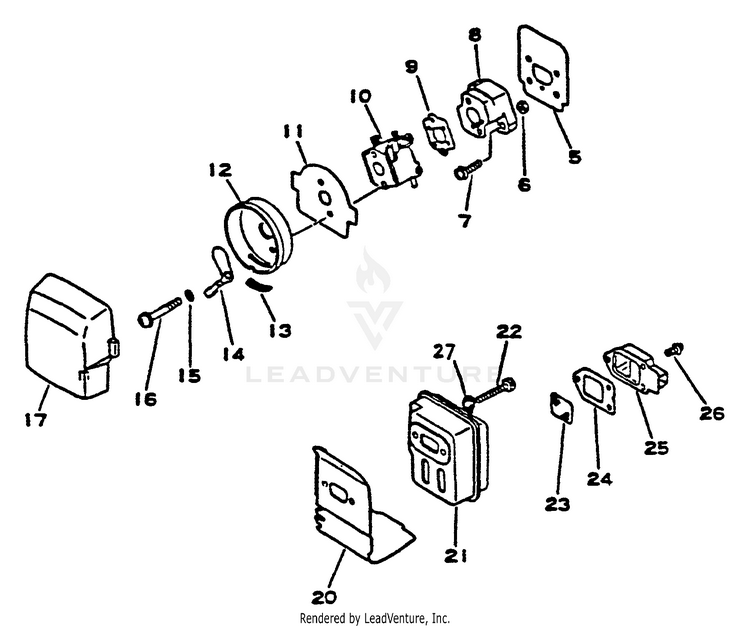

Intake, Exhaust, Air Cleaner

...
...
5
HEAT SHIELD, INTAKE ECH-V103001360
...
6
NUT M5 ECH-90050200005
...
7
SCREW 5x20 ECH-90023805020
...
8
INSULATOR, INTAKE ECH-13001742031
...
9
GASKET, INTAKE ECH-13001642031
...
10
CARBURETOR ECH-12520044733
...
11
PLATE, AIR FILTER ECH-13031942030
...
12
CASE, AIR FILTER ECH-13030142030
...
13
BUSHING ECH-17881042030
...
14
SHUTTER, CHOKE ECH-17851546731
...
15
WASHER 5.2x8x0.8T ECH-17851600830
...
16
SCREW 5x57 ECH-90024205057
...
17
FILTER, AIR ECH-13031042030
...
20
GASKET, MUFFLER INCLUDED IN MUFFLER ASS'Y P/N 14580044330 ECH-14551044331
...
21
MUFFLER INCLUDED IN MUFFLER ASS'Y P/N 14580044330 ECH-14581044330
...
22
BOLT 5x55 INCLUDED IN MUFFLER ASS'Y P/N 14580044330 ECH-90010505055
...
23
SCREEN, SPARK ARRESTER INCLUDED IN MUFFLER ASS'Y P/N 14580044330 ECH-14586240630
...
24
GASKET, EXHAUST INCLUDED IN MUFFLER ASS'Y P/N 14580044330 ECH-14586642031
...
25
COVER, MUFFLER INCLUDED IN MUFFLER ASS'Y P/N 14580044330 ECH-145809-42030
...
26
SCREW 4x10 INCLUDED IN MUFFLER ASS'Y P/N 14580044330 ECH-90024204010
...
27
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
