Echo SRM-1500A Brushcutter

Model: SRM-1500A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

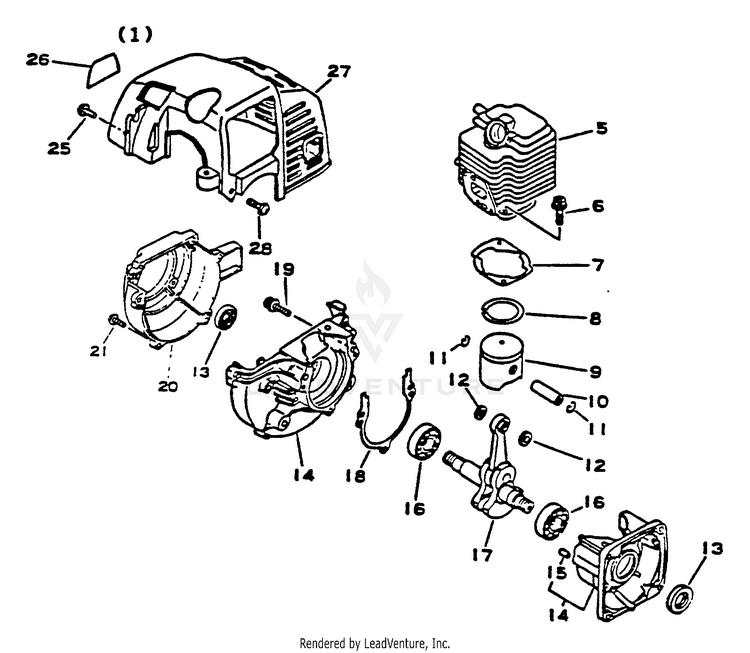

Engine, Crankcase, Fan Housing, Cover

...
...
5
CYLINDER ECH-10101145230
...
6
BOLT 5x22 ECH-90016205022
...
7
GASKET, CYLINDER USE Gasket Kit P/N 88900040630 ECH---
...
8
RING, PISTON ECH-10001105330
...
9
PISTON KIT ECH-10000044331
...
10
PIN, PISTON 8 ECH-10001311520
...
11
RING, SNAP ECH-10001504630
...
12
WASHER, THRUST ECH-10001411520
...
13
SEAL, OIL 12 ECH-10021242031
...
14
CRANKCASE KIT ECH-10020451031
...
15
PIN, LOCATING 4 ECH-V622000020
...
16
BEARING, BALL 6201 ECH-9403536201
...
17
CRANKSHAFT ASSY ECH-A011001410
...
18
GASKET, CRANKCASE USE Gasket Kit P/N 88900040630 ECH---
...
19
SCREW 5x25 ECH-90023805025
...
20
COVER, FAN - ORANGE ECH-10151144730
...
21
SCREW 4x16 ECH-90023804016
...
28
SCREW 4x16 ECH-90023804016
...
26
LABEL ECH-89011244630
...
27
COVER, CYLINDER ECH-10151442031
...
25
SCREW 4x12 ECH-90023804012
