Echo SP41BPS S/N: MSP10000001-MSP99999999 Sprayer

Model: SP41BPS S/N: MSP10000001-MSP99999999

Back To Assemblies

Save Part Not Listed?
product name

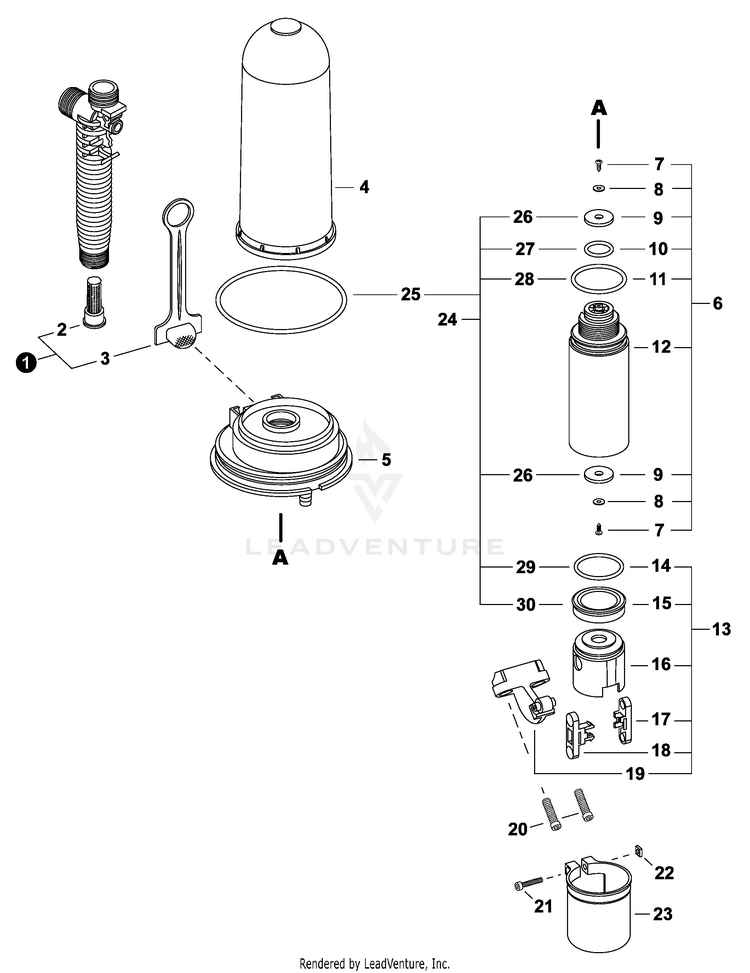

Pump

...
...
1
FILTER KIT Includes Items 2-3 ECH-99944100481
...
2
FILTER, SPRAY GUN ECH-CN011059
...
3
FILTER KIT ECH-99944100481
...
4
CHAMBER, PRESSURE ECH-NA (NO DISPONIBLE)
...
5
BASE, PRESSURE CHAMBER ECH-NA (NO DISPONIBLE)
...
6
CYLINDER ASSY, PISTON Includes Items 7-12 ECH-99944100474
...
7
SCREW, CYLINDER ECH-CN011029
...
8
WASHER, CYLINDER ECH-CN011030
...
9
SEAL, VALVE ECH---
...
10
O-RING, CYLINDER - SMALL ECH-CN010151-1
...
11
O-RING, CYLINDER - LARGE ECH-CN011033-1
...
12
CYLINDER, PISTON ECH---
...
13
PISTON ASSY Includes Items 14-19 ECH-99944100475
...
14
SPRING, SEAL ECH-CN011018
...
15
SEAL, PISTON ECH---
...
16
PISTON ECH---
...
17
ROD, CONNECTING (A) ECH---
...
18
ROD, CONNECTING (B) ECH---
...
19
LEVER, PIVOT ECH-CN011019
...
20
SCREW, LEVER ECH-CN011020
...
21
BOLT ECH-CN011046
...
22
NUT ECH-CN011014
...
23
CAP, DUST ECH-CN011023
...
24
REPAIR KIT, PUMP Includes Items 25-30 ECH-99944100471
...
25
PUMP ASSY, PISTON-DIAPHRAGM ECH-99944100523
...
26
SEAL, VALVE ECH---
...
27
O-RING, CYLINDER - SMALL ECH-CN010151-1
...
28
O-RING, CYLINDER - LARGE ECH-CN011033-1
...
29
SPRING, SEAL ECH-CN011018
...
30
SEAL, PISTON ECH---
