Echo SP40BPS S/N: MSP10001001 - MSP10999999 Sprayer

Model: SP40BPS S/N: MSP10001001 - MSP10999999

Back To Assemblies

Save Part Not Listed?
product name

Nozzles, Wand, Hose

...
...
1
NOZZLE KIT ECH-99944100485
...
2
NOZZLE KIT ECH-99944100485
...
3
CAP, NOZZLE - BRASS ECH---
...
4
O-RING, NOZZLE ECH---
...
5
BODY, NOZZLE ECH---
...
6
NOZZLE KIT ECH-99944100485
...
7
NOZZLE KIT ECH-99944100485
...
8
NUT, NOZZLE ECH---
...
9
GASKET, NOZZLE ECH---
...
10
ELBOW, NOZZLE ECH---
...
11
O-RING, ELBOW ECH---
...
12
GASKET KIT, WAND ECH-99944100486
...
13
GASKET, NOZZLE ECH---
...
14
O-RING, ELBOW ECH---
...
xx
O-RING, WAND 15 MM×3 MM ECH---
...
16
GASKET, ADAPTER ECH---
...
17
WAND ASSY, NYLON ECH-99944100480
...
18
WAND, SPRAYER ECH---
...
xx
O-RING, WAND 15 MM×3 MM ECH---
...
20
HOSE KIT ECH-569007
...
21
FILTER, SPRAY GUN ECH-CN011059
...
22
GASKET, ADAPTER ECH---
...
23
ADAPTOR, HOSE - BLACK ECH-CN010975
...
24
NUT, HOSE ECH-CN011128
...
xx
HOSE, BLACK 1210 MM ECH---
...
26
CLAMP, HOSE ECH-CN010987

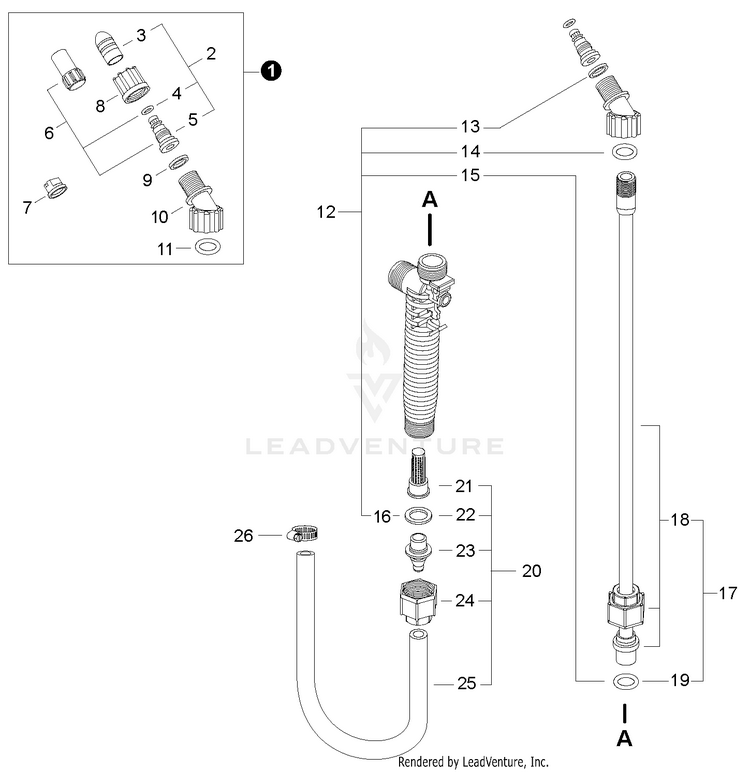

Schematic Image Zoomed
