Echo SP40BPS S/N: MSP10001001 - MSP10999999 Sprayer

Model: SP40BPS S/N: MSP10001001 - MSP10999999

Back To Assemblies

Save Part Not Listed?
product name

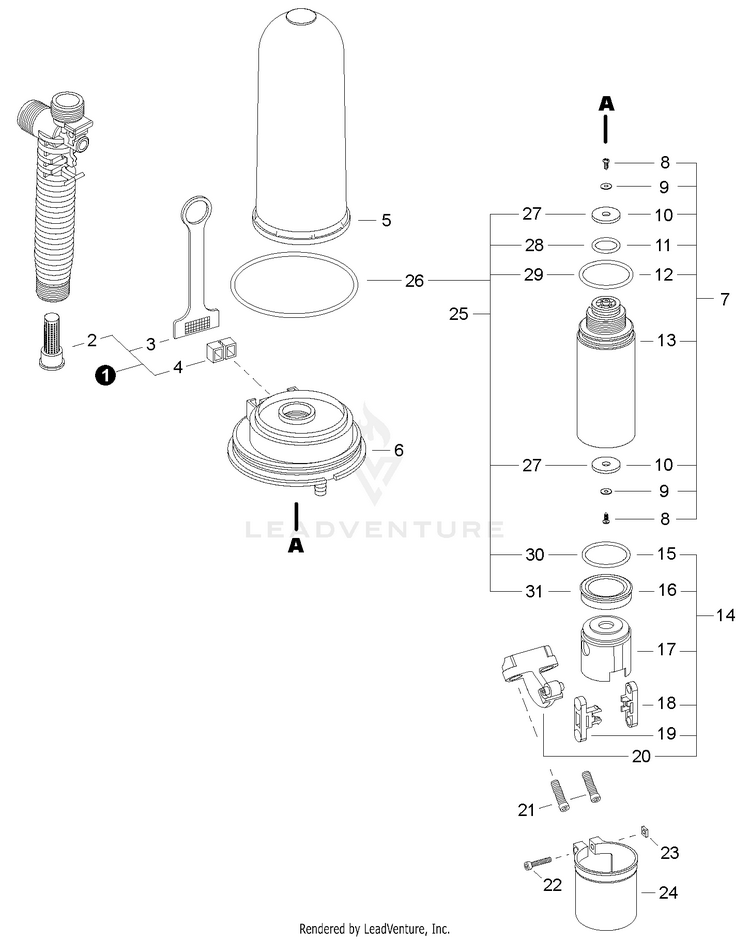

Pump

...
...
1
FILTER KIT ECH-99944100481
...
2
FILTER, SPRAY GUN ECH-CN011059
...
3
FILTER KIT ECH-99944100481
...
4
FILTER KIT ECH-99944100481
...
5
CHAMBER, PRESSURE NOT AVAILABLE SEPARATELY ECH---
...
6
BASE, PRESSURE CHAMBER NOT AVAILABLE SEPARATELY ECH---
...
7
CYLINDER ASSY, PISTON ECH-99944100474
...
8
SCREW, CYLINDER ECH-CN011029
...
9
WASHER, CYLINDER ECH-CN011030
...
10
SEAL, VALVE ECH---
...
11
O-RING, CYLINDER - SMALL ECH---
...
12
O-RING, CYLINDER - LARGE ECH---
...
13
CYLINDER ECH---
...
14
PISTON ASSY ECH-99944100475
...
15
SPRING, SEAL ECH-CN011018
...
16
SEAL, PISTON ECH---
...
17
PISTON ECH---
...
------------------
ROD, CONNECTING - RIGHT ECH---
...
------------------
ROD, CONNECTING - LEFT ECH---
...
20
LEVER, PIVOT ECH-CN011019
...
21
SCREW, LEVER ECH-CN011020
...
22
BOLT ECH-CN011046
...
23
NUT ECH-CN011014
...
24
CAP, DUST ECH-CN011023
...
25
REPAIR KIT, PUMP ECH-99944100471
...
26
O-RING, PRESSURE CHAMBER ECH---
...
27
SEAL, VALVE ECH---
...
28
O-RING, CYLINDER - SMALL ECH---
...
29
O-RING, CYLINDER - LARGE ECH---
...
30
SPRING, SEAL ECH-CN011018
...
31
SEAL, PISTON ECH---
