Echo SP21H S/N: MSP10000001-MSP99999999 Sprayer

Model: SP21H S/N: MSP10000001-MSP99999999

Back To Assemblies

Save Part Not Listed?
product name

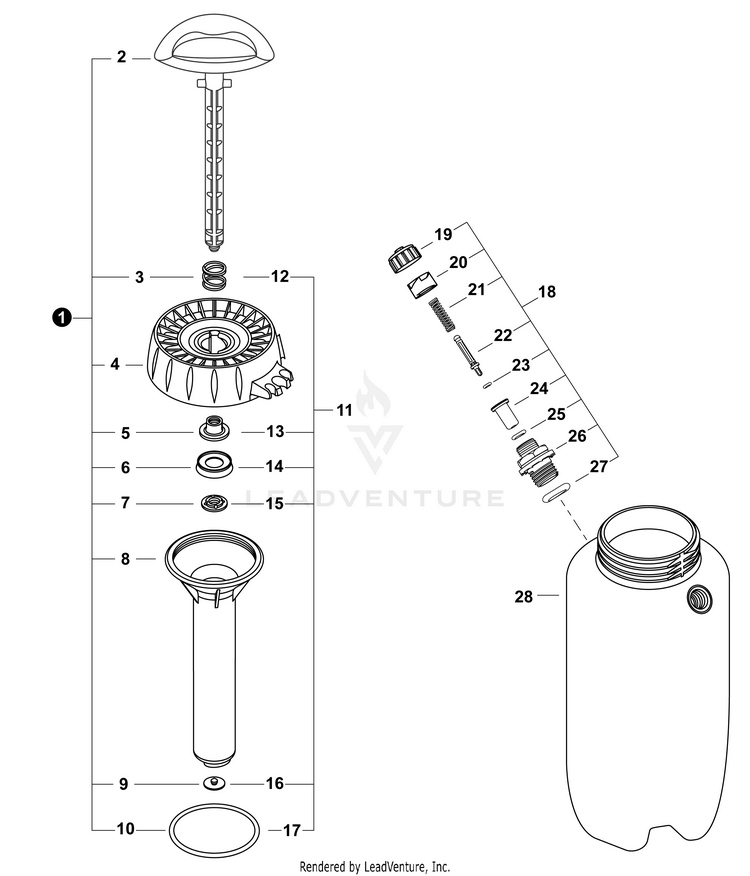

Pump / Pressure Relief Valve

...
...
1
PUMP ASSY Includes Items 2-10 ECH-99944100520
...
2
HANDLE, PUMP ECH---
...
3
SPRING, PUMP ECH---
...
4
CAP, TANK ECH---
...
5
ADAPTOR, PLUNGER CUP ECH---
...
6
CUP, PLUNGER ECH---
...
7
HOLDER - PLUNGER CUP ECH---
...
8
BARREL, PUMP ECH---
...
9
VALVE, CHECK ECH---
...
10
O-RING, CAP ECH---
...
11
PUMP ASSY Includes Items 12-17 ECH-99944100520
...
12
SPRING, PUMP ECH---
...
13
ADAPTOR, PLUNGER CUP ECH---
...
14
CUP, PLUNGER ECH---
...
15
HOLDER - PLUNGER CUP ECH---
...
16
VALVE, CHECK ECH---
...
17
O-RING, CAP ECH---
...
18
VALVE, PRESSURE RELIEF Includes Items 19-27 ECH-569033
...
19
CAP ECH---
...
20
RETAINER ECH---
...
21
SPRING ECH---
...
22
PLUNGER ECH---
...
23
O-RING ECH---
...
24
BARREL, PUMP ECH---
...
25
O-RING ECH---
...
26
OUTLET, TANK 11/16 ECH-CN011657
...
27
O-RING ECH---
...
28
TANK, SPRAYER ECH-NA (NO DISPONIBLE)
Schematic Image Zoomed
