Echo SP21H S/N: MSP10000001-MSP99999999 Sprayer

Model: SP21H S/N: MSP10000001-MSP99999999

Back To Assemblies

Save Part Not Listed?
product name

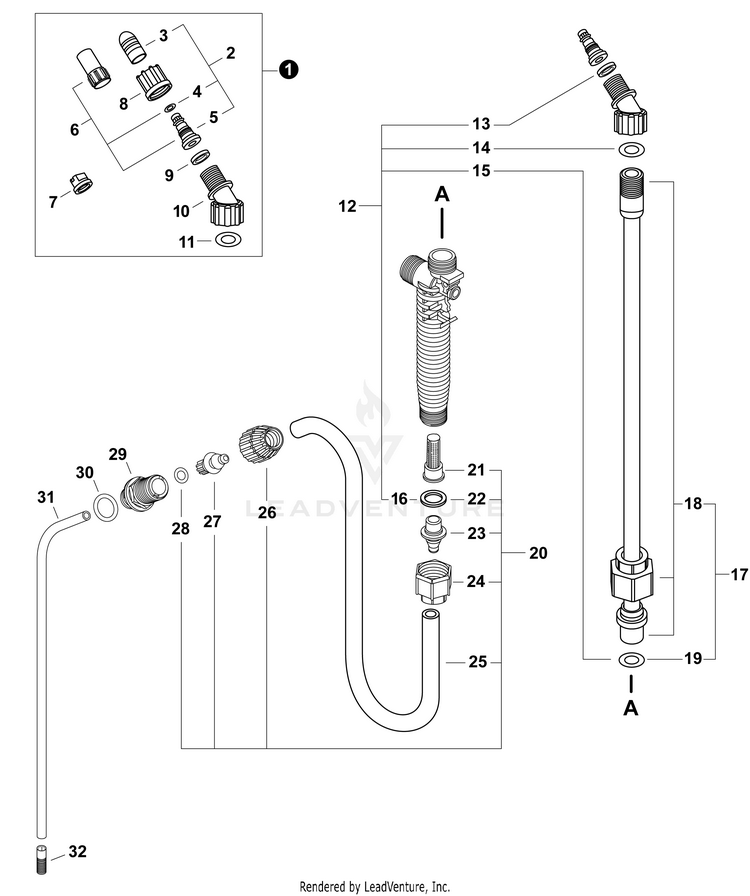

Nozzles, Wand, Hose

...
...
1
NOZZLE KIT Includes Items 2-11 ECH-99944100485
...
2
NOZZLE KIT Includes Items 3-5 ECH-99944100485
...
3
CAP, NOZZLE - BRASS ECH---
...
4
O-RING, NOZZLE ECH---
...
5
BODY, NOZZLE ECH---
...
6
NOZZLE KIT ECH-99944100485
...
7
NOZZLE KIT ECH-99944100485
...
8
NUT, NOZZLE ECH---
...
9
GASKET, NOZZLE ECH---
...
10
ELBOW, NOZZLE ECH---
...
11
O-RING, ELBOW ECH---
...
12
GASKET KIT, WAND Includes Items 13-16 ECH-99944100486
...
13
GASKET, NOZZLE ECH---
...
14
O-RING, ELBOW ECH---
...
xx
O-RING, WAND 15 MM×3 MM ECH---
...
16
GASKET, ADAPTER ECH---
...
17
WAND ASSY, METAL Includes Items 18-19 ECH-99944100505
...
xx
WAND, METAL ECH---
...
xx
O-RING, WAND 15 MM×3 MM ECH---
...
20
HOSE KIT Includes Items 21-28 ECH-569007
...
21
FILTER, SPRAY GUN ECH-CN011059
...
22
GASKET, ADAPTER ECH---
...
23
ADAPTOR, HOSE - BLACK ECH-CN010975
...
24
NUT, HOSE ECH-CN011128
...
xx
HOSE, BLACK 1210 MM ECH---
...
26
NUT, TANK ECH-CN1-3605
...
27
ADAPTER, HOSE - WHITE ECH---
...
28
O-RING, ADAPTER ECH---
...
29
OUTLET, TANK 15/16 ECH-CN011287
...
30
O-RING, TANK OUTLET ECH-CN010840
...
31
TUBE, OUTLET 16-1/4" ECH-CN1-2697-16
...
32
FILTER, OUTLET ECH-CN1-4571
