Echo SP20HPS S/N: MSP10001001 - MSP10999999 Sprayer

Model: SP20HPS S/N: MSP10001001 - MSP10999999

Back To Assemblies

Save Part Not Listed?
product name

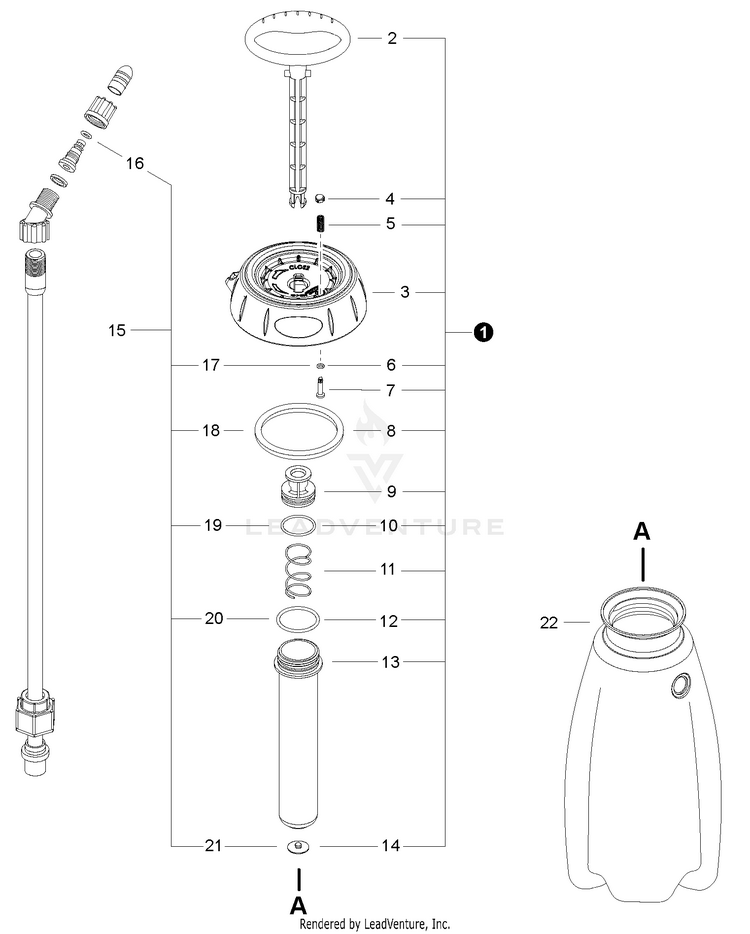

Pump

...
...
1
PUMP ASSY ECH-569031
...
2
HANDLE, PUMP ECH---
...
3
CAP, TANK ECH---
...
4
BUTTON, PRESSURE RELIEF ECH---
...
5
SPRING, PRESSURE RELIEF ECH---
...
6
O-RING, PRESSURE RELIEF ECH---
...
7
VALVE, PRESSURE RELIEF ECH---
...
8
O-RING, CAP ECH---
...
9
PLUNGER, PUMP ECH---
...
10
O-RING, PLUNGER ECH---
...
11
SPRING, PUMP ECH---
...
12
O-RING, BARREL ECH---
...
13
BARREL, PUMP ECH---
...
14
VALVE, CHECK ECH---
...
15
REPAIR KIT, PUMP ECH-569015
...
16
O-RING, NOZZLE ECH---
...
17
O-RING, PRESSURE RELIEF ECH---
...
18
O-RING, CAP ECH---
...
19
O-RING, PLUNGER ECH---
...
20
O-RING, BARREL ECH---
...
21
VALVE, CHECK ECH---
...
22
TANK, SPRAYER NOT AVAILABE SEPARATELY ECH---
