Echo SHC-2100 Type 1 Shaft Hedge Trimmer

Model: SHC-2100 Type 1

Back To Assemblies

Save Part Not Listed?
product name

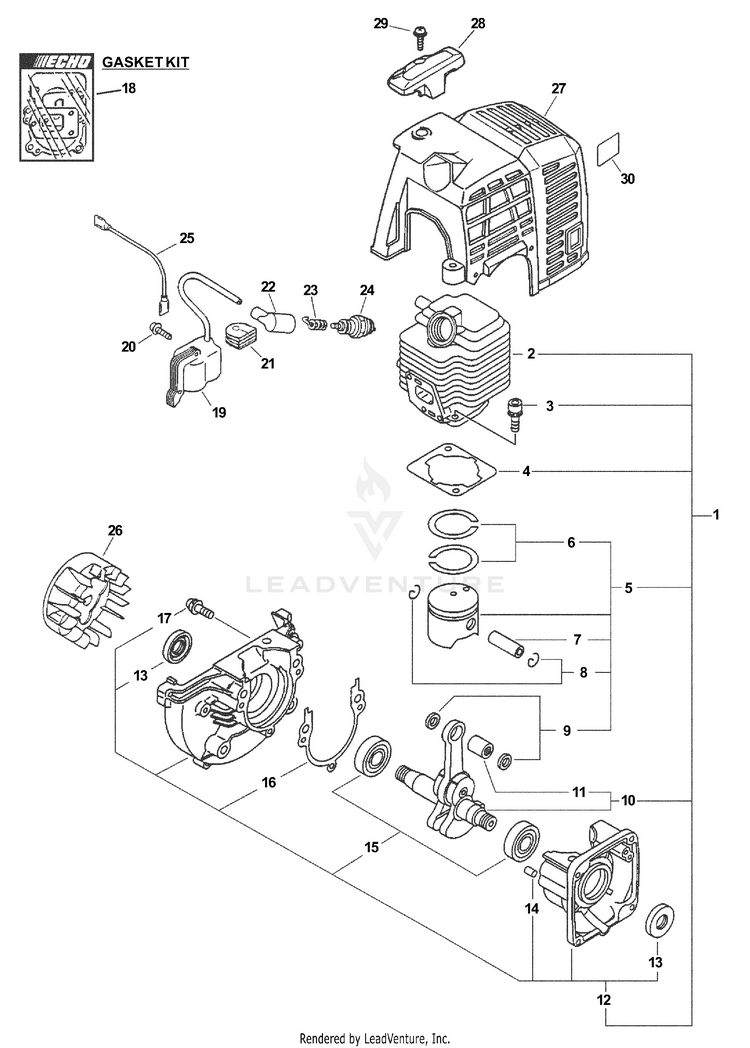

Engine, Crankcase, Ignition, Cylinder Cover

...
...
1
SHORT BLOCK ES-2100;PB-2100 OPTIONAL ENGINE REPOWER ECH-SB1026
...
2
CYLINDER S/N: 001001-504087,CANADA 001001-004512 ECH-10101106562
...
3
BOLT 5x22 S/N: 001001-504087,CANADA 001001-004512 ECH-90016205022
...
4
GASKET, CYLINDER Included in GASKET KIT S/N: 001001-504087, CANADA 001001-004512 ECH-10101044332
...
5
KIT, PISTON S/N: 001001-504087,CANADA 001001-004512 ECH-P100013150
...
6
RING, PISTON S/N: 001001-504087,CANADA 001001-004512 ECH-10001105330
...
2
CYLINDER S/N: 504088 & UP,CANADA 004513 & UP ECH-A130000012
...
3
BOLT 5x22 S/N: 504088 & UP,CANADA 004513 & UP ECH-90016205022
...
4
GASKET, CYLINDER Included In GASKET KIT S/N: 504088 - 999999, CANADA 004513 - 999999 ECH-10101044332
...
5
PISTON KIT S/N: 504088 & UP,CANADA 004513 & UP ECH-P021001102
...
6
RING, PISTON S/N: 504088 & UP,CANADA 004513 & UP ECH-A101000000
...
7
PIN, PISTON 8 ECH-10001311520
...
8
RING, SNAP ECH-10001504630
...
9
WASHER, THRUST ECH-10001411520
...
10
CRANKSHAFT ASSY ECH-A011001410
...
11
BEARING, NEEDLE 8 ECH-V553000010
...
12
CRANKCASE KIT ECH-10020452133
...
13
SEAL, OIL 12 ECH-10021242031
...
14
PIN, LOCATING 4 ECH-V622000020
...
15
BEARING, BALL 6201 ECH-9403536201
...
16
GASKET, CRANKCASE Included In GASKET KIT ECH-10024242030
...
17
BOLT 5x28 ECH-90016205028
...
18
GASKET KIT ECH-88900021464
...
19
COIL, IGNITION ECH-15660152131
...
20
SCREW 4x22 ECH-90016204022
...
21
GROMMET ECH-15611240630
...
22
CAP, SPARK PLUG ECH-15901201620
...
23
TERMINAL, SPARK PLUG ECH-15901103432
...
24
SPARK PLUG - BPMR7A ECH-15901010230
...
24
SPARK PLUG - RCJ7Y ECH-159017-10230
...
25
LEAD - IGNITION ECH-V485001080
...
26
FLYWHEEL ECH-15680144731
...
27
COVER, ENGINE ECH-10151448930
...
28
GUARD, TOP ECH-15991254130
...
29
SCREW 5x16 ECH-90023805016
...
30
LABEL - CAUTION - HOT ECH-X505002310
