product name

Echo S/N: MSP10000001-MSP99999999 Sprayer

Model: S/N: MSP10000001-MSP99999999

Save Part Not Listed?
product name

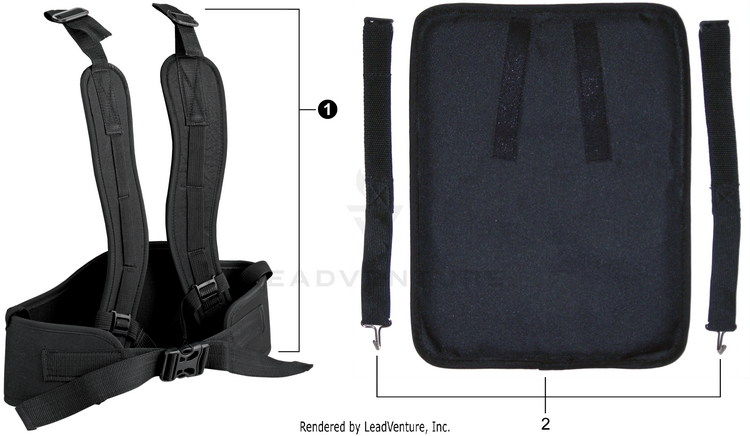

Harness

...
...
1
HARNESS ASSY, BACKPACK ECH-569029
...
2
PAD KIT, BACKPACK ECH-569030

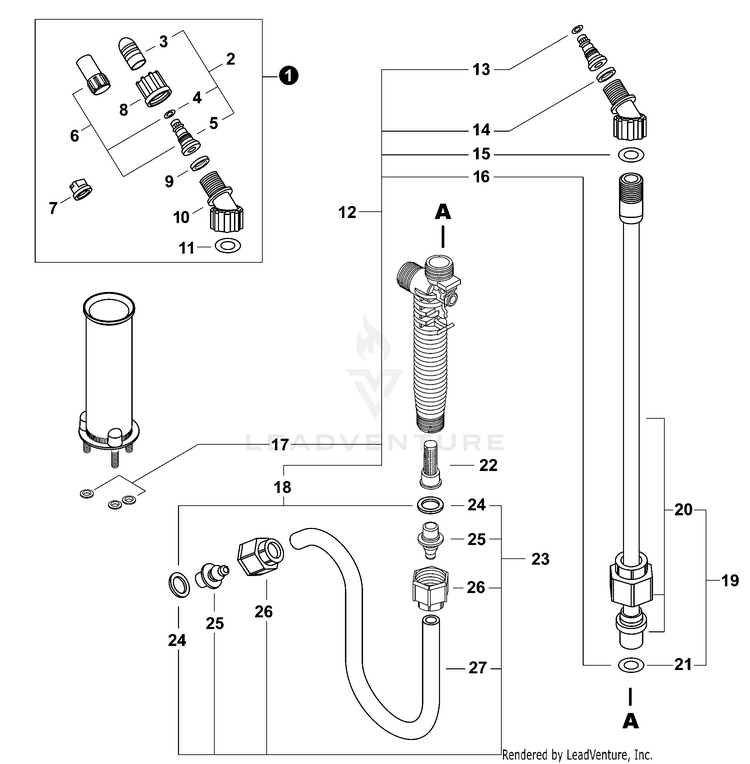

Nozzles, Wand, Hose

...
...
1
NOZZLE KIT Includes Items 2-11 ECH-99944100485
...
2
NOZZLE KIT Includes Items 3-5 ECH-99944100485
...
3
CAP, NOZZLE - BRASS ECH---
...
4
O-RING, NOZZLE ECH---
...
5
BODY, NOZZLE ECH---
...
6
NOZZLE KIT ECH-99944100485
...
7
NOZZLE KIT ECH-99944100485
...
8
NUT, NOZZLE ECH---
...
9
GASKET, NOZZLE ECH---
...
10
ELBOW, NOZZLE ECH---
...
11
O-RING, ELBOW ECH---
...
12
GASKET KIT, BPE Includes Items 13-18 ECH-569020
...
13
O-RING, NOZZLE ECH---
...
14
GASKET, NOZZLE ECH---
...
15
O-RING, ELBOW ECH---
...
xx
O-RING, WAND 15 MM×3 MM ECH---
...
17
GASKET, STUD ECH---
...
18
GASKET, ADAPTER ECH---
...
19
WAND ASSY, METAL Includes Items 20-21 ECH-99944100505
...
xx
WAND, METAL ECH---
...
xx
O-RING, WAND 15 MM×3 MM ECH---
...
22
FILTER, SPRAY GUN ECH-CN011059
...
23
HOSE ASSY Includes Items 24-27 ECH-569022
...
24
GASKET, ADAPTER ECH---
...
25
ADAPTOR, HOSE - BLACK ECH-CN010975
...
26
NUT, HOSE ECH-CN011128
...
xx
HOSE, BLACK 1210 MM ECH---

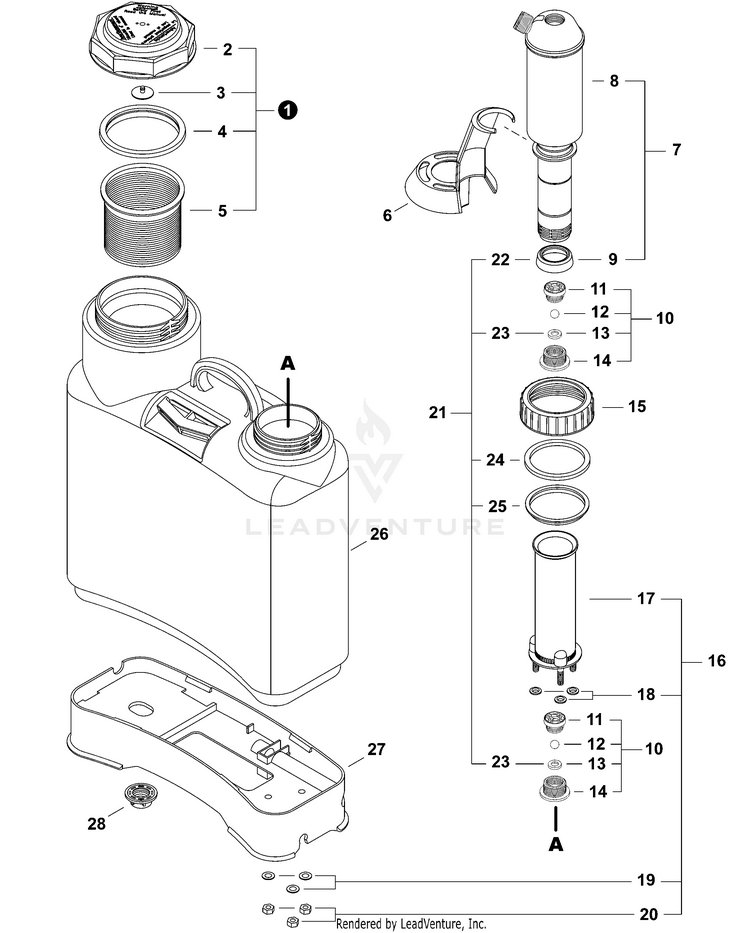

Pump / Tank

...
...
1
CAP KIT, TANK Includes Items 2-5 ECH-569002
...
2
CAP, TANK ECH---
...
3
VALVE, CHECK - CAP ECH---
...
4
GASKET, BASKET ECH---
...
5
BASKET, FILTER ECH---
...
6
AGITATOR ECH-CN011343
...
7
CHAMBER KIT, PRESSURE Includes Items 8-9 ECH-569028
...
8
CHAMBER KIT, PRESSURE ECH-569028
...
9
GASKET KIT, PUMP ECH-569021
...
10
VALVE ASSY, CHECK Includes Items 11-14 ECH-99944100522
...
11
BODY, VALVE ECH-CN011323
...
12
BALL, VALVE ECH---
...
13
WASHER ECH---
...
14
VALVE ASSY, CHECK ECH-99944100522
...
15
RING, LOCKING ECH-CN011317-7
...
16
CYLINDER KIT, PISTON Includes Items 17-20 ECH-569024
...
17
CYLINDER, PISTON ECH---
...
18
GASKET, STUD ECH---
...
19
WASHER ECH-CN011330
...
20
NUT ECH-CN011331
...
21
GASKET KIT, PUMP Includes Items 22-25 ECH-569021
...
22
GASKET KIT, PUMP ECH-569021
...
23
WASHER ECH---
...
24
GASKET KIT, PUMP ECH-569021
...
25
SEAL KIT ECH-CN6-8215
...
26
TANK, SPRAYER ECH-NA (NO DISPONIBLE)
...
27
BASE, TANK ECH-CN011315-7
...
28
NUT, TANK ECH-CN011319

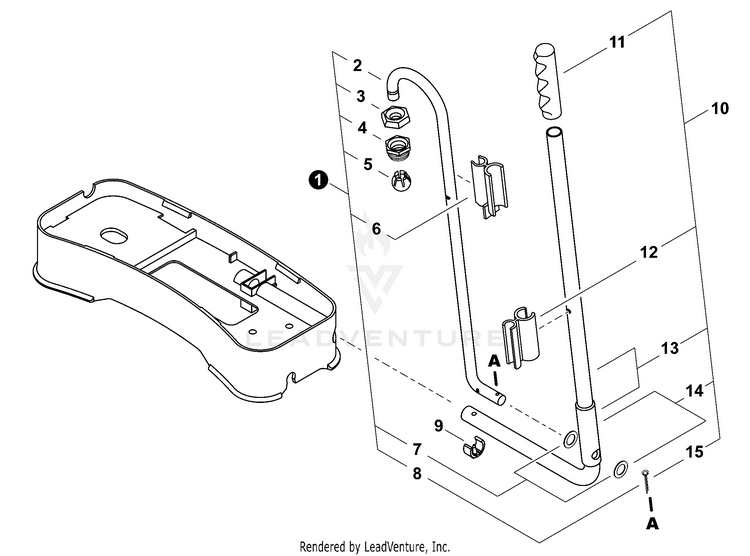

Pump Lever

...
...
1
PUMP ARM KIT Includes Items 2-8 ECH-569019
...
2
ARM, PUMP ECH---
...
3
BOOT, JOINT ECH-CN011333
...
4
NUT, JOINT ECH-CN011332
...
5
JOINT, BALL ECH-CN011336
...
6
CLIP, PUMP LEVER ECH-CN011347
...
7
WASHER ECH-CN011348
...
8
PIN, COTTER ECH-CN011076
...
9
C-CLIP ECH-569042
...
10
LEVER KIT, PUMP Includes Items 11-15 ECH-569026
...
11
GRIP, LEVER ECH-CN011007
...
12
CLIP, METAL WAND ECH-CN013587
...
13
LEVER, PUMP ECH---
...
14
WASHER ECH-CN011348
...
15
PIN, COTTER ECH-CN011076

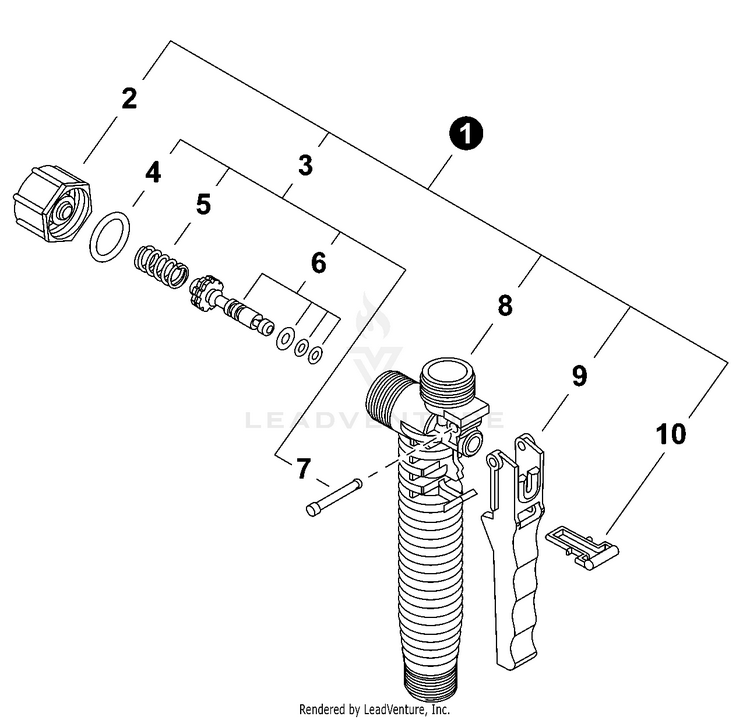

Spray Gun

...
...
1
GUN, SPRAY Includes Items 2-10 ECH-569006
...
2
CAP, DISCHARGE ECH-CN011050
...
3
REPAIR KIT, DISCHARGE Includes Items 4-7 ECH-99944100477
...
4
O-RING, DISCHARGE ECH---
...
5
SPRING, DISCHARGE ECH-CN011052
...
6
SPOOL ASSY ECH-CN302017
...
7
PIN, TRIGGER ECH-CN010172
...
8
GUN, SPRAY ECH-569006
...
9
LEVER, TRIGGER ECH-CN011049
...
10
LOCK, TRIGGER ECH-CN011057
