Echo RB-60 S/N: N29000001001 - N29000999999 Spreader

Model: RB-60 S/N: N29000001001 - N29000999999

Save Part Not Listed?
product name

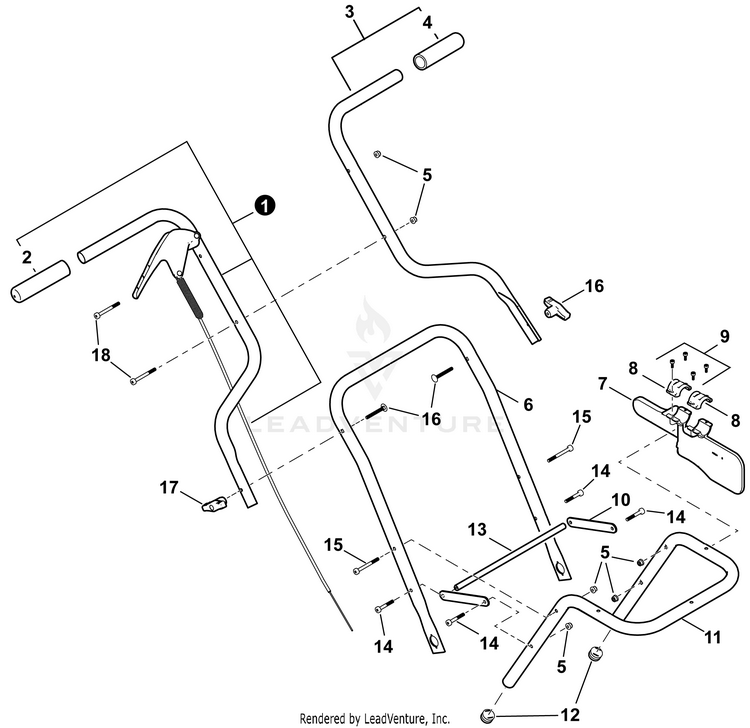

Frame, Handle

...
...
1
HANDLE CABLE ASSY Includes Item 2 ECH-P021053100
...
2
GRIP, HANDLE ECH-C403000930
...
3
HANDLE ASSY Includes Item 4 ECH-P021053110
...
4
GRIP, HANDLE ECH-C403000930
...
5
NUT, FLANGE M6 ECH-9210806000
...
6
FRAME ECH-C600001830
...
7
DEFLECTOR ECH-A179000060
...
8
CLAMP, DEFLECTOR ECH-C551000230
...
9
BOLT, TORX 4x12 ECH-V804000000
...
10
BRACE, FRAME ECH-C602000040
...
11
FRAME ECH-C600001820
...
12
CAP ECH-C525000090
...
13
BRACE, SPREADER ECH-C602000050
...
14
BOLT 6x40 ECH-V204001850
...
15
BOLT, M6 X 60MM ECH-V204001870
...
16
BOLT, M6 ECH-V204001840
...
17
THUMBSCREW ECH-V299000660
...
18
BOLT, M6 X 60MM ECH-V204001870

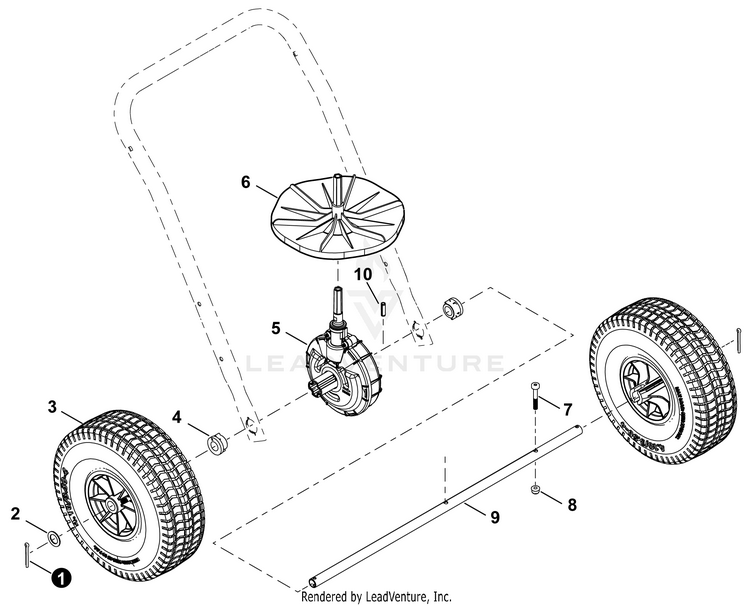

Gear Case

...
...
1
PIN - COTTER ECH-V640001070
...
2
WASHER, CIRCULAR ECH-V311000200
...
3
WHEEL ASSY, RB60 ECH-C730000131
...
4
BEARING, SHAFT ECH-C501000150
...
5
GEAR CASE ASSY ECH-P021053090
...
6
IMPELLER ECH-E021000040
...
7
BOLT 6x40 ECH-V204001850
...
8
NUT, FLANGE M6 ECH-9210806000
...
9
DRIVESHAFT ECH-C504001380
...
10
PIN ECH-V645000030

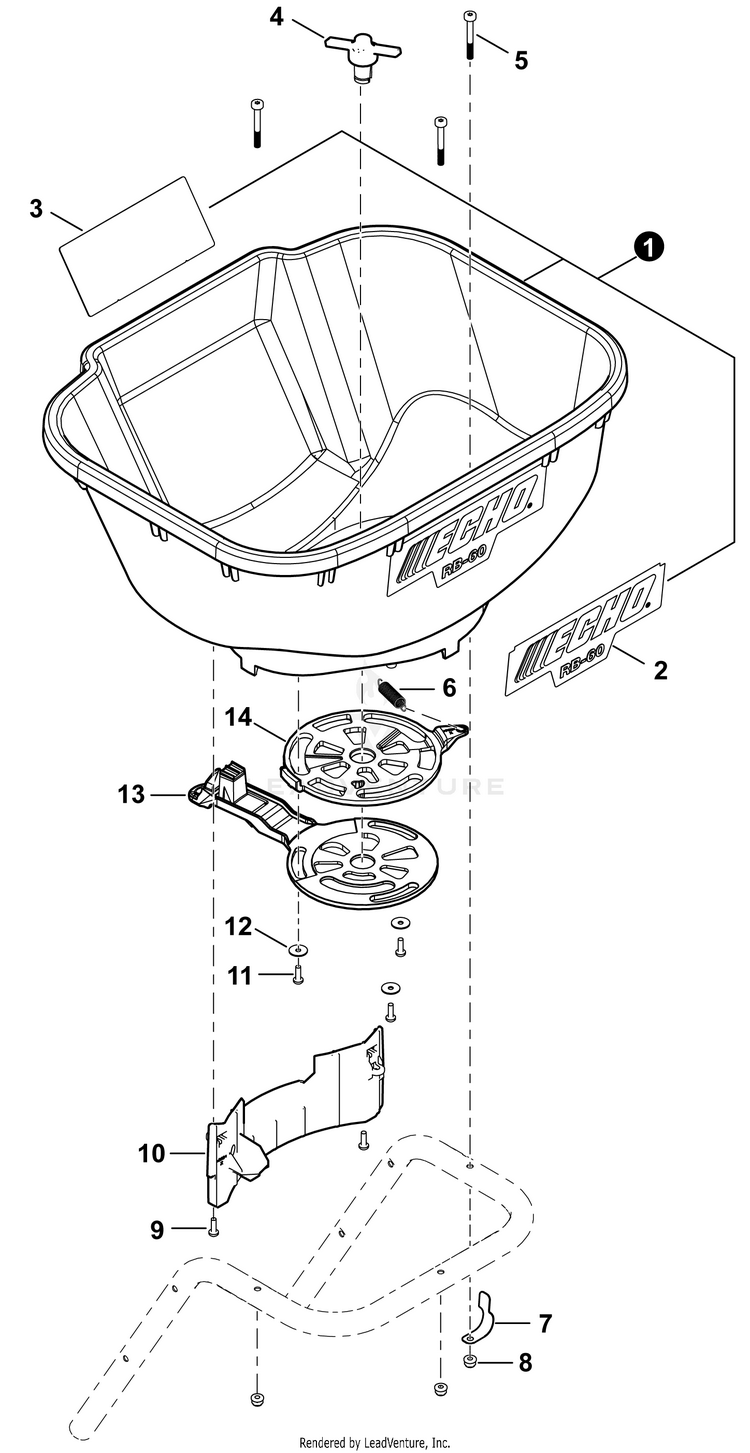

Hopper

...
...
1
HOPPER Includes Items 2-3 ECH-G400000070
...
2
LABEL - ECHO ECH-X502001170
...
3
LABEL - OPERATION ECH-X532005600
...
4
AGITATOR ECH-E156000010
...
5
BOLT, M6 X 50MM ECH-V204001860
...
6
SPRING ECH-V451001610
...
7
CLIP ECH-V490001720
...
8
NUT, FLANGE M6 ECH-9210806000
...
9
BOLT, TORX 5x16 ECH-V805000000
...
10
COVER, BRACKET ECH-A422000480
...
11
BOLT, TORX 5x20 ECH-V805000160
...
12
WASHER 5 ECH-V303000390
...
13
METERING PLATE , LOWER ECH-C627000180
...
14
METERING PLATE , UPPER ECH-C627000190

Accessories

...
...
1
COVER, HOPPER ECH-G401000020
