Echo PPT-2400 Type 1E Power Pruner-Fixed Shaft

Model: PPT-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

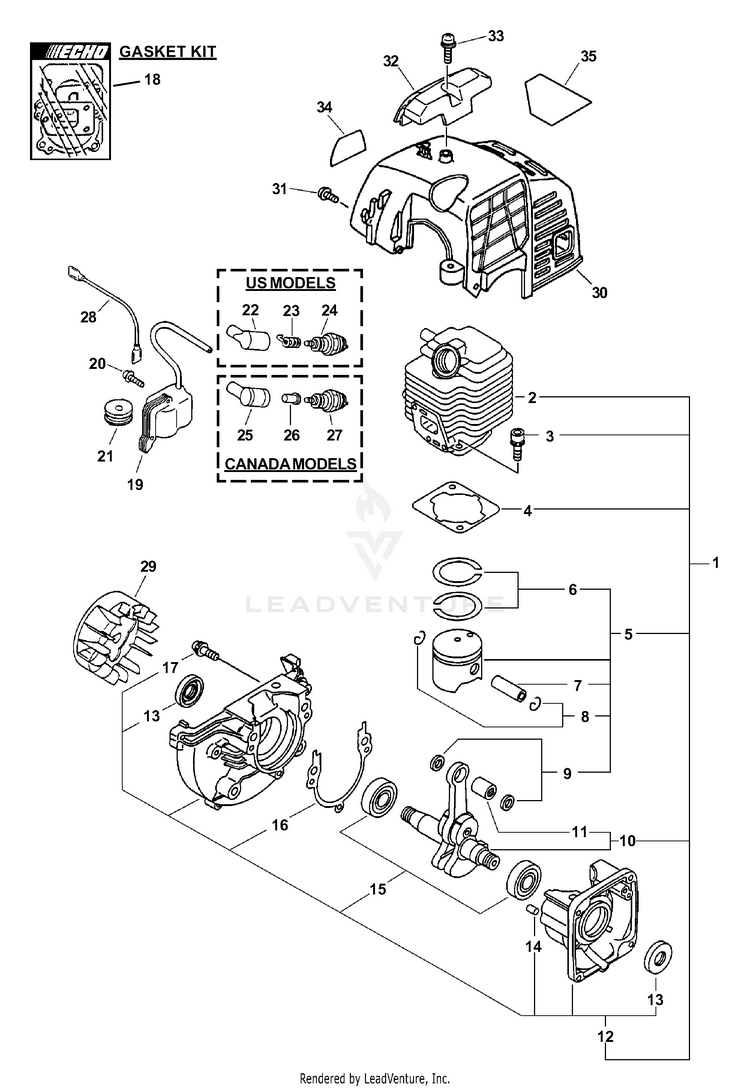

Engine, Ignition, Cylinder Cover S/N: 505900 - 999999

...
...
1
SHORT BLOCK ES-2400 INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER ECH-SB1027
...
2
CYLINDER ECH-10101108961
...
3
BOLT 5x22 ECH-90016205022
...
4
GASKET, CYLINDER Included In GASKET KIT ECH-10101044332
...
5
PISTON KIT Includes ITEMS 6-9 ECH-10000052130
...
6
RING, PISTON ECH-10001109560
...
7
PIN, PISTON 8 ECH-10001311520
...
8
RING, SNAP ECH-10001504630
...
9
WASHER, THRUST ECH-10001411520
...
10
CRANKSHAFT ASSY Includes ITEM 15 ECH-A011001410
...
11
BEARING, NEEDLE 8 ECH-V553000010
...
12
CRANKCASE KIT Includes ITEMS 17-21 ECH-10020451031
...
13
SEAL, OIL 12 ECH-10021242031
...
14
PIN, LOCATING 4 ECH-V622000020
...
15
BEARING, BALL 6201 ECH-9403536201
...
16
GASKET, CRANKCASE Included In GASKET KIT ECH-10024242030
...
17
BOLT 5x28 ECH-90016205028
...
18
GASKET KIT ECH-88900005960
...
19
COIL, IGNITION ECH-15662652731
...
20
SCREW 4x22 ECH-90016204022
...
21
GROMMET ECH-15011244330
...
22
CAP, SPARK PLUG ECH-15901201620
...
23
TERMINAL, SPARK PLUG ECH-15901103432
...
24
SPARK PLUG - BPM7Y ECH-99944500071R
...
25
CAP, SPARK PLUG CANADA MODELS ECH-15901210230
...
26
ADAPTOR, SPARK PLUG - CAP CANADA MODELS ECH-15901605330
...
27
SPARK PLUG - BPMR7A CANADA MODELS ECH-15901010230
...
28
LEAD - IGNITION ECH-V485001080
...
28
FLYWHEEL ECH-15680109660
...
29
GUARD, ENGINE ECH-10158746730
...
30
COVER, ENGINE - ORANGE ECH-10151444531
...
31
SCREW 4x12 ECH-90023804012
...
32
GUARD, TOP - BLACK ECH-15991244530
...
33
SCREW 5x16 ECH-90025305016
...
34
LABEL - PPT-2400 ECH-89003424661
...
35
LABEL - CAUTION - ELECTRICAL ECH-89016022661
