Echo PPT-2400 Type 1E Power Pruner-Fixed Shaft

Model: PPT-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

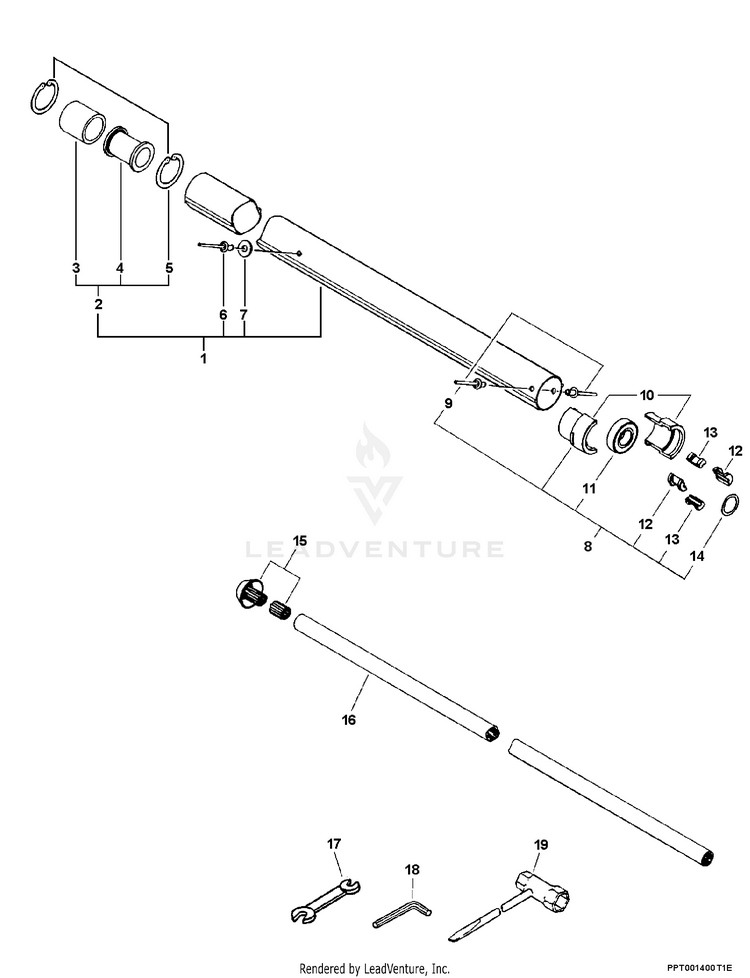

Upper Pipe, Upper Drive Shaft, Tools

...
...
1
PIPE, MAIN - BLACK INCLUDES ITEMS 2-7 ECH-61029923960
...
2
GUIDE ASSY, DRIVESHAFT INCLUDES ITEMS 4-7 ECH-43330722361
...
3
PAD, FOAM ECH-10429322360
...
4
GUIDE, SHAFT ECH-C316000010
...
5
RING, SNAP ECH-61033522360
...
6
RIVET ECH-89001122460
...
7
WASHER, FLAT 5 ECH-40011122360
...
8
HOLDER ASSY, BEARING ECH-61010522360
...
9
RIVET ECH-89001122360
...
10
HOLDER, BEARING ECH-61011122360
...
11
BEARING, BALL 6002 DDU ECH-90080206002
...
12
GUIDE, SHAFT - LARGE ECH-43334522560
...
13
GUIDE, SHAFT - SMALL ECH-43334522460
...
14
WASHER, WAVE ECH-17812922360
...
15
ADAPTOR, UPPER DRIVESHAFT ECH-61029822360
...
16
SHAFT, UPPER DRIVE L= 79.75 ECH-61001122460
...
17
SPANNER 8x10 ECH-89511200330
...
18
WRENCH, ALLEN 3 MM ECH-X605000090
...
19
TOOL, BOX SPANNER ECH-89541522160
