Echo PPT-2400 Type 1E Power Pruner-Fixed Shaft

Model: PPT-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

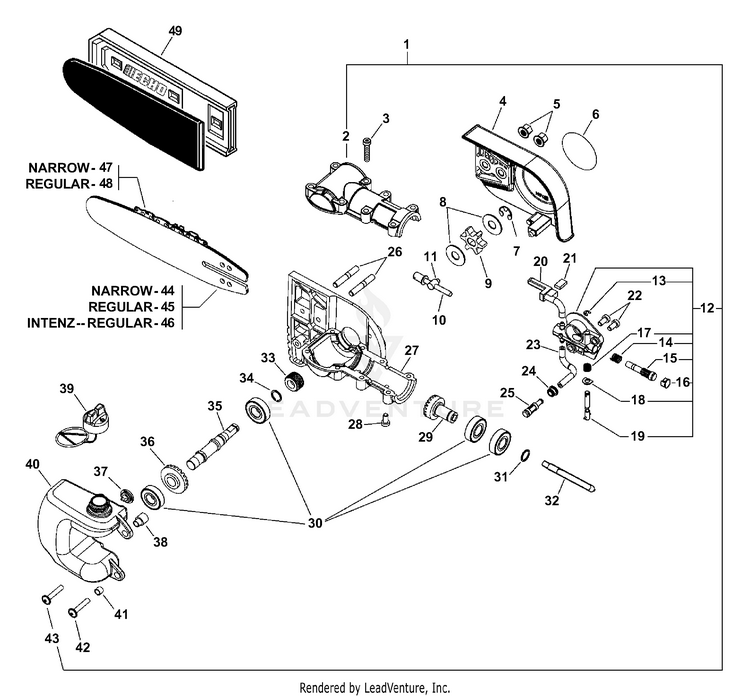

Gear Case, Auto-Oiler, Guide Bar, Chain S/N: 505900 - 999999

...
...
1
GEAR CASE ASSY INCLUDES ITEMS 2-43 ECH-9001015
...
2
COVER, GEAR CASE ECH-C531000030
...
3
BOLT 5x0.8x25 ECH-90010905025
...
4
GUARD, SPROCKET ECH-C300000001
...
5
NUT, FLANGE M6 ECH-43301903933
...
6
LABEL - STARTER - ECHO ECH-X502000330
...
7
RING, RETAINING 0.300 ECH-V583000010
...
8
WASHER 10 ECH-17501439131
...
9
SPROCKET, DRIVE ECH-C580000070
...
10
BOLT 5 ECH-43301639131
...
11
TENSIONER, CHAIN ECH-43301403931
...
12
AUTO-OILER ASSY Includes ITEMS 13-19 ECH-43700239130
...
13
E-RING ECH-12312715030
...
14
SPRING ECH-43701938330
...
15
PLUNGER ASY WAS 43702437330 ECH-P003006700
...
16
CAP, OIL PUMP ECH-43706237330
...
17
SPRING ECH-43701537330
...
18
WASHER ECH-43702937330
...
19
ADJUSTER, OILER ECH-43701639130
...
20
PIPE, OIL OUTLET ECH-43721139134
...
21
PAD, FOAM ECH-43724439130
...
22
SCREW M5x.8x10 ECH-V253000010
...
23
PIPE, IMPULSE 3x6x75 RePower BULK OPTION: 90014 ECH-13011014330
...
24
GROMMET ECH-13211501462
...
25
FILTER, OIL ECH-P100001900
...
26
BOLT, STUD 6 ECH-V224000000
...
27
CASE KIT, GEAR ECH-P021049720
...
28
SCREW M5x.8x10 ECH-V253000010
...
29
GEAR SET, BEVEL ECH-P021009723
...
30
BEARING, BALL 6201 ECH-9405206001
...
31
RING, SNAP 12 ECH-90070600012
...
32
CONNECTOR, DRIVESHAFT ECH-61002522361
...
33
GEAR, WORM ECH-V652000021
...
34
RING, SNAP 12 ECH-90070600012
...
35
SHAFT KIT, GEAR ECH-P021011610
...
36
SHAFT KIT, GEAR ECH-P021011610
...
37
VENT ASSY ECH-13131406320
...
38
COLLAR 6 ECH-V354000010
...
39
CAP ASSY, OIL ECH-P021000951
...
40
TANK, OIL ECH-C200000000
...
41
SPACER 6.2x7.8x6 ECH-13104528230
...
42
SCREW 5x16 MM ECH-V253000030
...
43
SCREW 5x28 ECH-V253000020
...
44
GUIDE BAR - 12" GAUGE: .043" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable ECH-1120374401
...
45
GUIDE BAR - 12" GAUGE: .050" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable ECH-1121374401
...
46
GUIDE BAR - 12" - INTENZ GAUGE: .050" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable ECH-1122374401
...
47
SAW CHAIN - 90SG - 12" - MICRO-LITE GAUGE: .043" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable ECH-1907044
...
48
SAW CHAIN - 91VS - 12" - LOW PROFILE GAUGE: .050" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable ECH-1917044
...
49
SCABBARD 12" ECH-X490001040
