Echo PPT-2400 Type 1E Power Pruner-Fixed Shaft

Model: PPT-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

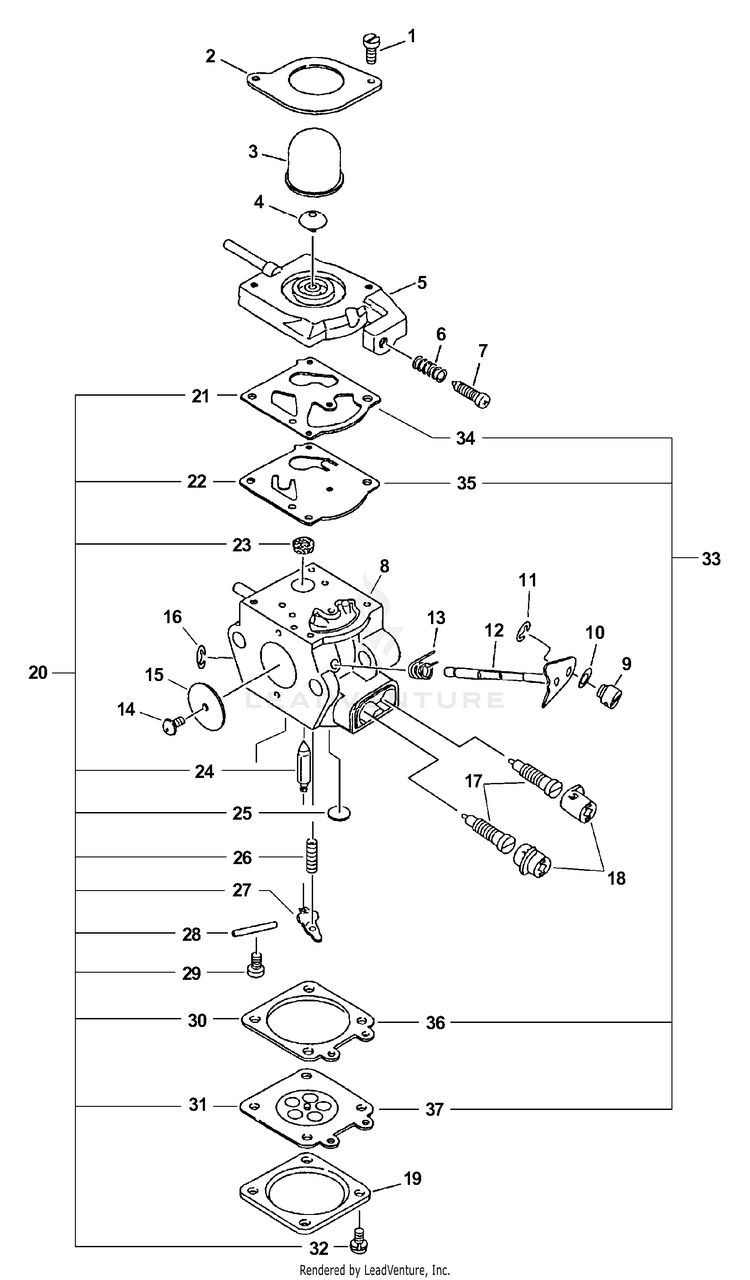

Carburetor -- WT-424B

...
...
xx
CARBURETOR - WT-424C ECH-12300052133
...
1
SCREW ECH-12311043130
...
2
RETAINER, PURGE BULB ECH-12314209560
...
3
BULB, PURGE ECH-A263000020
...
4
VALVE, CHECK ECH-12317135630
...
5
COVER, FUEL PUMP ECH-12312443230
...
6
SPRING, IDLE ECH-P003006940
...
7
SCREW, IDLE ADJUSTMENT ECH-P003006950
...
8
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
9
SWIVEL ECH-12317226030
...
10
WASHER ECH-P003007000
...
11
CLIP, SWIVEL ECH-P003006790
...
12
SHAFT, THROTTLE ECH-12311752130
...
13
SPRING, THROTTLE RETURN ECH-12311352130
...
14
SCREW ECH-12311403930
...
15
VALVE, THROTTLE ECH-12311652130
...
16
E-RING ECH-12312715030
...
17
NEEDLE, MIXTURE ECH-12312052131
...
18
CAP, LIMITER ECH-12315139230
...
19
COVER, MET. DIA. ECH-P003006890
...
20
REPAIR KIT, CARBURETOR ECH-12310052130
...
21
GASKET, PUMP ECH---
...
22
DIAPHRAGM, PUMP ECH---
...
23
STRAINER ECH---
...
24
VALVE, INLET NEEDLE ECH---
...
25
PLUG, WELCH ECH---
...
26
SPRING, METERING LEVER ECH---
...
27
LEVER, METERING ECH---
...
28
PIN, METERING LEVER ECH---
...
29
SCREW, METERING LEVER PIN ECH---
...
30
GASKET, METERING ECH---
...
31
DIAPHRAGM, METERING ECH---
...
------------------
SCREW ECH---
...
33
DIAPHRAGM/GASKET KIT ECH-12310152130
...
34
GASKET, PUMP ECH---
...
35
DIAPHRAGM, PUMP ECH---
...
36
GASKET, METERING ECH---
...
37
DIAPHRAGM, METERING ECH---
