Echo PPT-2100 Type 1E Power Pruner Telescoping Shaft

Model: PPT-2100 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

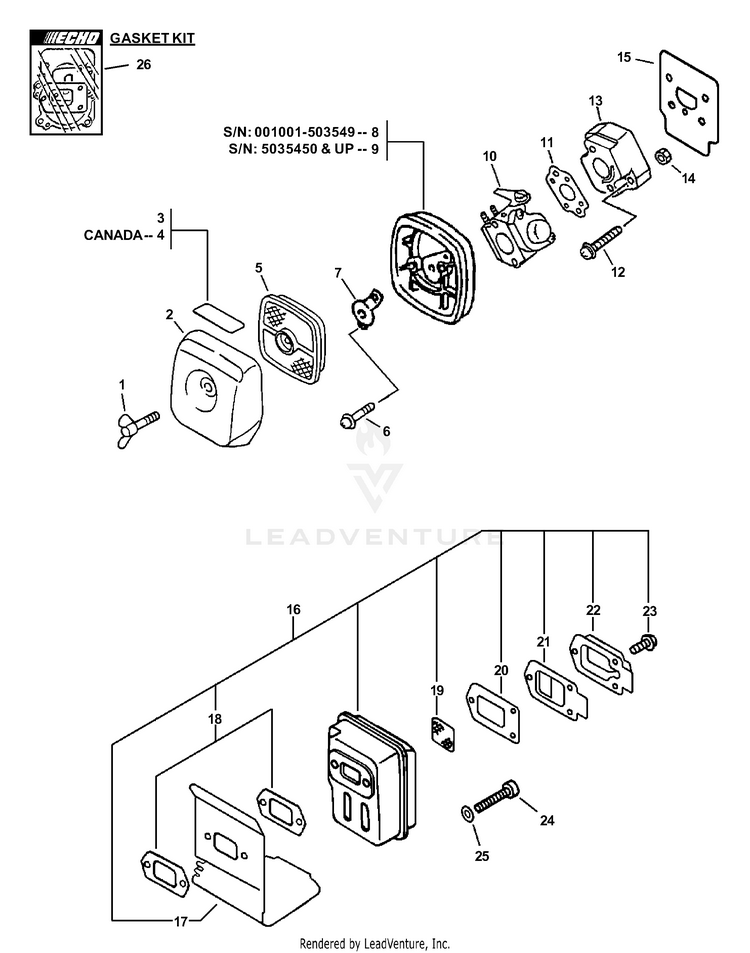

Intake, Exhaust

...
...
1
BOLT, WING 5x20 ECH-21041752730
...
2
COVER, AIR FILTER - BLACK ECH-13031305863
...
3
LABEL - CHOKE ECH-89012105360
...
4
LABEL - CHOKE CANADA MODELS ECH-89012106360
...
5
FILTER, AIR - DOUBLE LAYER ECH-A226001410
...
6
SCREW 5x65 ECH-90024205065
...
7
PLATE, PREVENT ECH-12901152730
...
8
CASE, AIR CLEANER ""ORANGE-20"" S/N: 001001-503549 ECH-13030706960
...
9
CASE, AIR CLEANER ""ORANGE-20"" S/N: 5035450 & UP ECH-13030706960
...
10
CARBURETOR C1U-K52 SRM-2400 ECH-12520013317
...
11
GASKET, INTAKE Included In GASKET KIT ECH-13001642031
...
12
SCREW 5x20 ECH-90023805020
...
13
INSULATOR, INTAKE ECH-13001742031
...
14
NUT M5 ECH-90050000005
...
15
HEAT SHIELD, INTAKE Included In GASKET KIT ECH-V103001360
...
16
MUFFLER ASSY Includes ITEMS 17-23 ECH-14580054133
...
17
HEAT SHIELD, EXHAUST Included In GASKET KIT ECH-A320000251
...
18
GASKET, EXHAUST Included In GASKET KIT ECH-V104000160
...
19
SCREEN, SPARK ARRESTER ECH-14586240630
...
20
GASKET, EXHAUST Included In GASKET KIT ECH-14586642031
...
21
GUIDE, EXHAUST ECH-14587642030
...
22
GUIDE, EXHAUST - INNER ECH-14586354130
...
23
SCREW 4x10 ECH-90023804010
...
24
BOLT 5x55 ECH-90010505055
...
25
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
26
GASKET KIT ECH-88900005065
