Echo PP-1260 Type 1 Power Pruner

Model: PP-1260 Type 1

Back To Assemblies

Save Part Not Listed?
product name

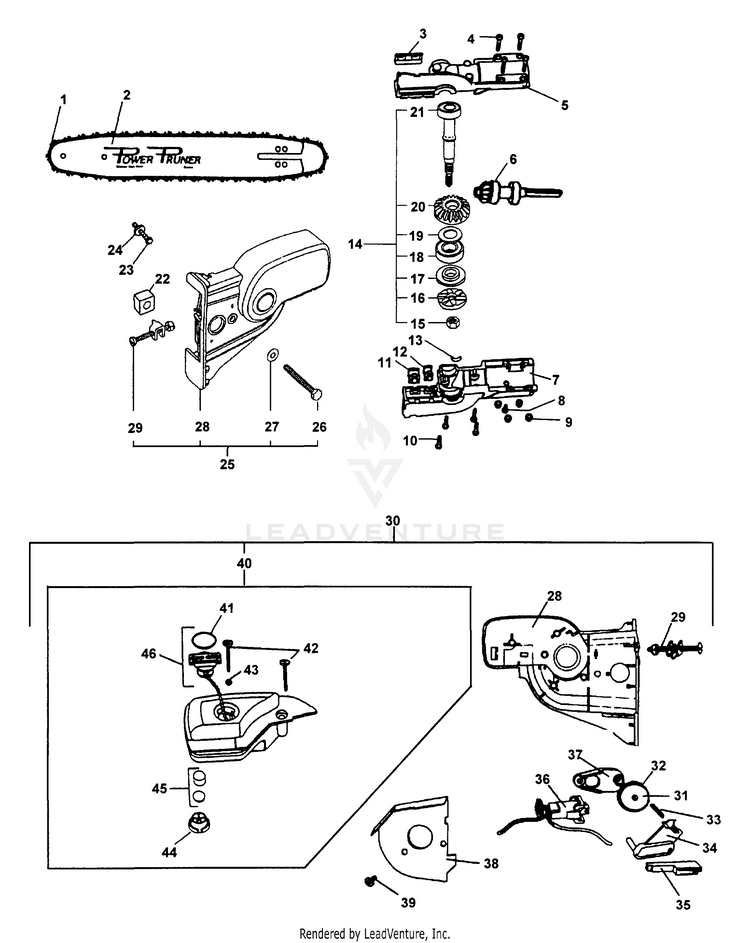

Gearcase, Oiler Asy, Guide Bar, Chain

...
...
xx
GEAR CASE ASSY Includes ITEMS 1-49 ECH-9001015
...
xx
GEAR CASE ASSY INCLUDES ITEMS 3 - 49 ECH-9001015
...
1
SAW CHAIN - 90SG - 12" - MICRO-LITE ECH-1907044
...
2
GUIDE BAR - 12" ECH-1120374401
...
3
BRACKET ECH-43305522360
...
4
SCREW, TORX 10-24 UNC 1-1/4 ECH-90005300400
...
5
CASE, GEAR ECH-61040722460
...
6
SHAFT ASSY, GEAR ECH-61030922361
...
7
CASE, GEAR ECH-61040722360
...
8
SCREW ECH-90005300200
...
9
NUT, LOCK 10-24 UNC ECH-90003150100
...
10
SCREW, TORX ECH-90005300300
...
11
SPACER ECH-11007622360
...
12
SPACER ECH-11007622460
...
13
CUSHION ECH-10491022360
...
14
GEAR SHAFT ASSY Includes ITEMS 15-21 ECH-61030622360
...
15
NUT, HEX ECH-90003000200
...
16
SPROCKET, DRIVE ECH-30281022360
...
17
SPACER, SPROCKET ECH-30281222360
...
18
BEARING, BALL ECH-9404206001
...
19
WASHER 12 ECH-10013222060
...
20
GEAR, BEVEL ECH-61031122360
...
21
SHAFT, GEAR ECH-61036022360
...
22
SPACER ECH-11007622560
...
23
BOLT 6 ECH-V204000090
...
24
WASHER 6 ECH-17802022360
...
25
OILER COVER ASSY INCLUDES ITEMS 26 - 29 ECH-43760223960
...
26
BOLT ECH-90005600200
...
27
WASHER, FLAT ECH-90003500200
...
28
COVER, OILER ECH-43760522360
...
29
TENSIONER KIT, CHAIN ECH-43309522360
...
30
GEAR CASE ASSY INCLUDES ITEMS 28, 29 & 31 - 46 ECH-9001015
...
31
CAM, OIL PUMP INCLUDES ITEM 32 ECH-43710422360
...
32
O-RING ECH-43712222360
...
33
SPRING, COMPRESSION ECH-10494022360
...
34
LINK, OILER IDLER ECH-70700022360
...
35
PIPE ECH-16821822160
...
36
AUTO-OILER ASSY ECH-43700022460
...
37
LINK,?OILER?DRIVE ECH-43704122360
...
38
PLATE, PROTECTION ECH-69902522360
...
39
SCREW 8-32x1/4 ECH-90005200200
...
40
TANK ASSY, OIL INCLUDES ITEMS 41 - 46 ECH-43600522360
...
41
O-RING ECH-43712222060
...
42
SCREW, TORX ECH-90005200300
...
43
O-RING ECH-27021722460
...
44
GROMMET, OIL ECH-43724322360
...
45
FILTER, OIL ECH-43620522360
...
46
CAP, OIL ECH-43600122060
