Echo PBAM-400E Mister Attachment

Model: PBAM-400E Mister Attachment

Save
 Part Not Listed?Part Not Listed?
product name

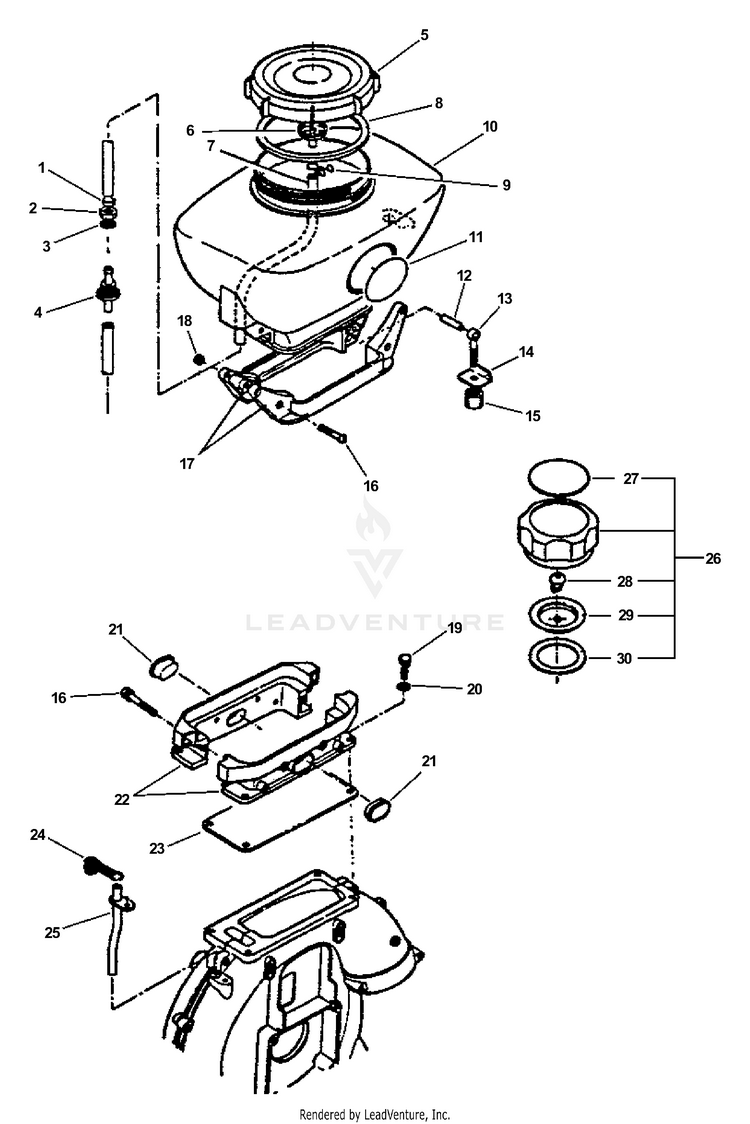

General Assembly

...
...
1
CLIP 10.5 MM ECH-13201314010
...
2
NUT 12 ECH-36301900310
...
3
WASHER 12 ECH-V309000170
...
4
CONNECTOR, PIPE ECH-36301700310
...
5
CAP, TANK Includes ITEM 6 ECH-25000102810
...
6
CONNECTOR, PIPE ECH-25001300310
...
7
PIPE, INNER PRESSURE 7x11x400BL ECH-36301400310
...
8
GASKET, CHEMICAL TANK ECH-25001101110
...
9
CLIP 10.5 MM ECH-13201314010
...
10
TANK, CHEMICAL Includes ITEM 11 ECH-25000003511
...
11
LABEL ECH-89011201110
...
12
PIN ECH-25091401110
...
13
BOLT ECH-25091501110
...
14
WASHER ECH-25091801110
...
15
NUT ECH-25091601110
...
16
SCREW 5x30 ECH-90024205030
...
17
HOLDER ECH-25090001810
...
18
NUT M5 ECH-90050200005
...
19
BOLT 6x20 ECH-90010006020
...
20
WASHER 6 ECH-90060200006
...
21
PLUG ECH-27002702810
...
22
CLAMP KIT ECH-27000003510
...
23
PLATE ECH-20014002810
...
24
PLUG ECH-36302101110
...
25
HOSE, AIR ECH-36301501110
...
26
CAP ASSY INCLUDES ITEMS 27-30 ECH-P100006490
...
27
LABEL - FUEL MIX ECH-89014706160
...
28
VALVE, CHECK ECH-13131400330
...
29
HOLDER, VENT ECH-13101503331
...
30
GASKET, FUEL CAP, PBAM-400 ECH-13101604632

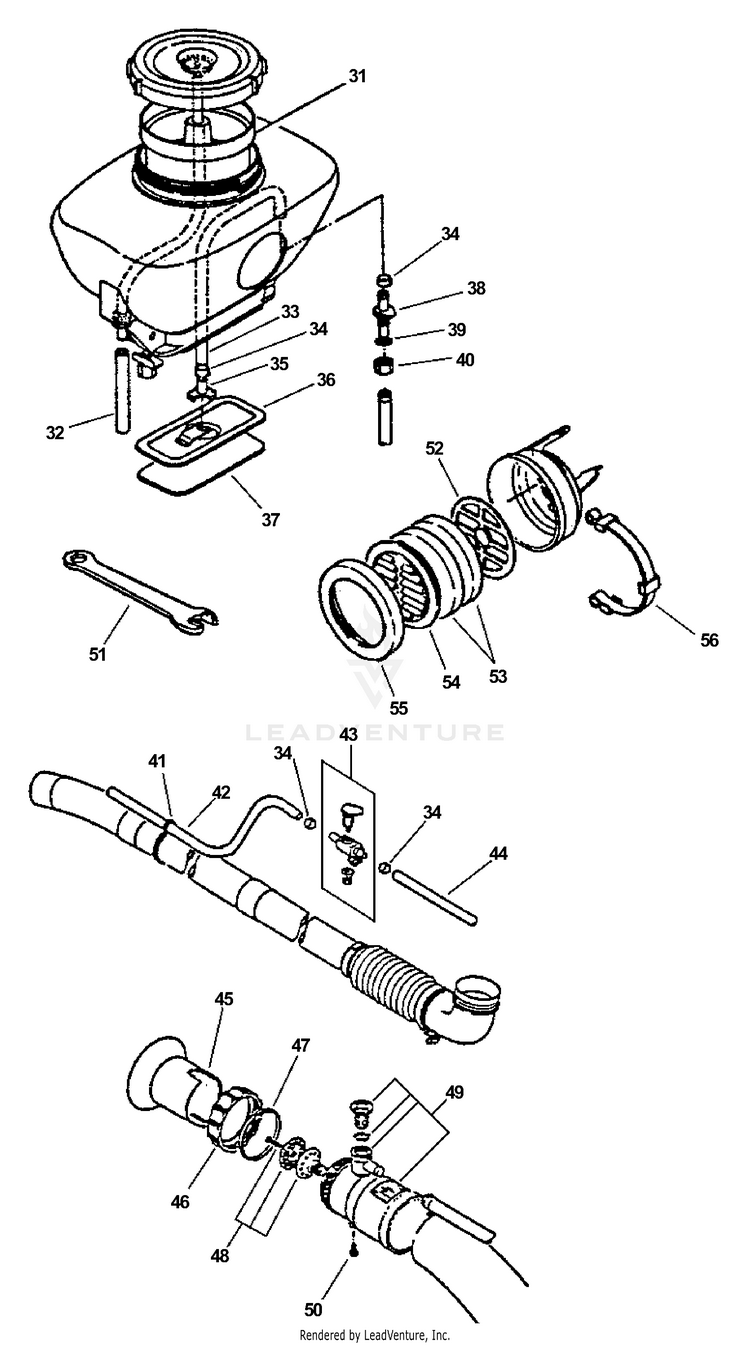

Hoses & Attachments

...
...
31
FILTER ECH-25421010510
...
32
PIPE ECH-36302402410
...
33
PIPE, DISCHARGE 9x13x350 ECH-38201101110
...
34
CLAMP ECH-357023-01110
...
35
CONNECTOR ECH-355012-00910
...
36
PLATE ECH-25301001111
...
37
SPACER ECH-25301502810
...
38
CONNECTOR, PIPE ECH-35701001110
...
39
O-RING 3x13 ECH-35701401110
...
40
NUT 14 ECH-35701501110
...
41
CLIP, TUBE ?55 ECH-35791100111
...
42
HOSE ECH-35701102810
...
43
VALVE ECH-358100-01110
...
44
HOSE, FLUID ECH-35701202810
...
xx
NOZZLE ASSY INCLUDES ITEMS 45-50 ECH-212500-01111
...
45
COLLAR ECH-212515-01110
...
46
NUT ECH-212514-01110
...
47
RING ECH-212513-01110
...
48
NOZZLE ECH-222000-01110
...
49
ADJUSTER, VOLUME ECH-21250101111
...
50
SCREW 5x12 ECH-90024605012
...
51
SPANNER 10x21 ECH-89512001110
...
52
RETAINER, AIR FILTER PS-400E ONLY ECH-13031900760
...
53
FILTER, AIR PB-400E ONLY ECH-13031000760
...
54
COVER, AIR FILTER PB-400E ONLY ECH-13031304620
...
55
COVER, AIR FILTER PB-400E ONLY ECH-13034104620
...
56
CLAMP PS-400E ONLY ECH-13042500761
...
...
...
