Echo PB-610 S/N: 02001001 - 02999999 Backpack Blower

Model: PB-610 S/N: 02001001 - 02999999

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

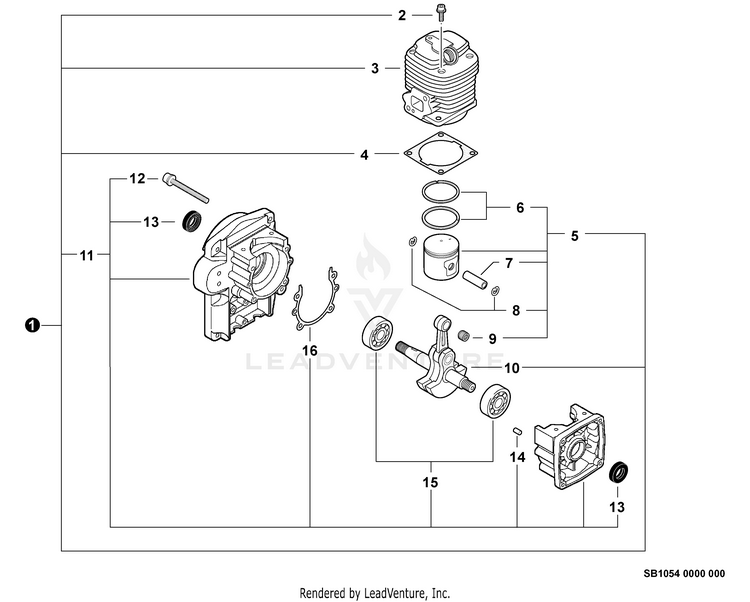

Engine, Short Block -- SB1054

...
...
1
SHORT BLOCK Includes ITEMS 2-16 RePower OPTION ECH-SB1054
...
2
BOLT 5x22 ECH-90016205022
...
3
CYLINDER ECH-A130000111
...
4
GASKET, CYLINDER Included In GASKET KIT ECH-10101006211
...
5
PISTON KIT Includes ITEMS 6-9 ECH-P021038581
...
6
RING, PISTON ECH-10001108360
...
7
PIN, PISTON ECH-10001306210
...
8
RING, SNAP 8 ECH-10001500120
...
9
BEARING, NEEDLE 10 ECH-10001212331
...
10
CRANKSHAFT ASSY ECH-10010006210
...
11
CRANKCASE KIT Includes ITEMS 13-16 ECH-10020408261
...
12
BOLT 5x40 ECH-90016205040
...
13
SEAL, OIL 15 ECH-10021300310
...
14
PIN, LOCATING 4 ECH-V622000020
...
15
BEARING, BALL 6202 ECH-90081036202
...
16
GASKET, CRANKCASE Included In GASKET KIT ECH-10024210721
