Echo PB-46LN S/N: 001001 - 999999 Backpack Blower

Model: PB-46LN S/N: 001001 - 999999

Back To Assemblies

Save Part Not Listed?
product name

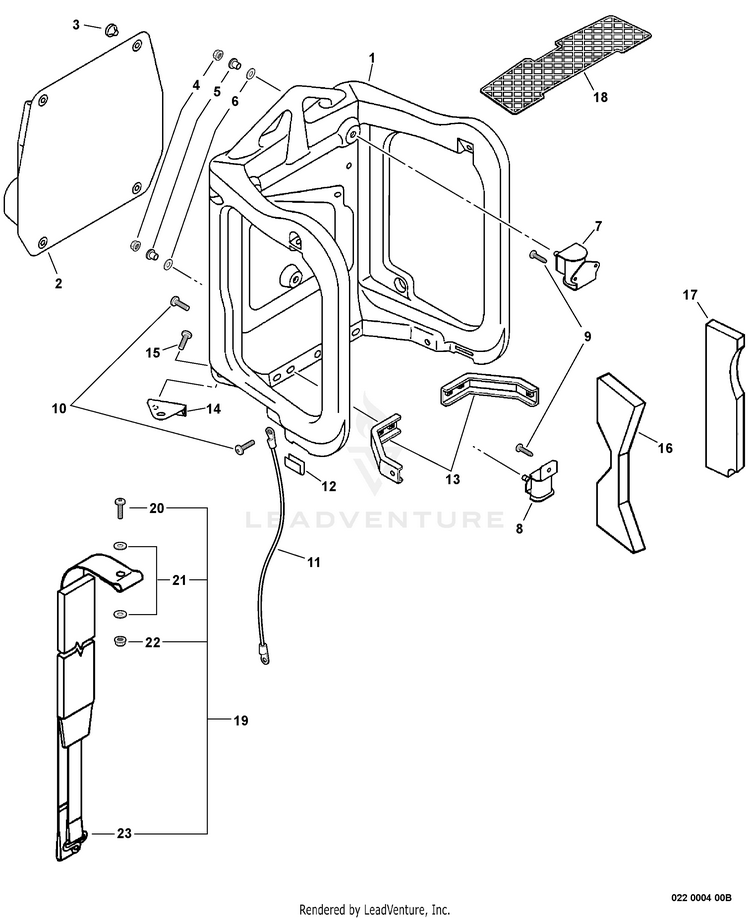

Backpack Frame, Harness S/N: 001001 - 552527

...
...
1
FRAME, BACKPACK ECH-30001008362
...
2
CUSHION, BACKPACK ECH-30010508261
...
3
CLIP ECH-30033306160
...
4
NUT, FLANGE M5 ECH-90051600005
...
5
COLLAR ECH-10491508260
...
6
CUSHION ECH-13192502310
...
7
CUSHION ECH-10090508261
...
8
CUSHION ECH-P021000251
...
9
SCREW 5x16 ECH-90025305016
...
10
SCREW 5x14 ECH-9154005014
...
11
LEAD - GROUND ECH-16200721260
...
12
BUMPER ECH-30003208360
...
13
CONNECTOR, FRAME ECH-30001208260
...
14
BRACKET, HANGER ECH-30061408260
...
15
SCREW 5x20 ECH-90020905020
...
16
PAD, FOAM - LEFT ECH-70116021260
...
17
PAD, FOAM - RIGHT ECH-70116121260
...
18
COVER, DUST ECH-A127000080
...
19
HARNESS, BACKPACK Includes ITEMS 20-23 ECH-C061000100
...
20
SCREW 5x14 ECH-9154005014
...
21
WASHER 5.5x18x1 ECH-30021700610
...
22
NUT, FLANGE M5 ECH-90051600005
...
23
RING, HARNESS ECH-30101608260
