Echo PB-46LN S/N: 001001 - 999999 Backpack Blower

Model: PB-46LN S/N: 001001 - 999999

Back To Assemblies

Save Part Not Listed?
product name

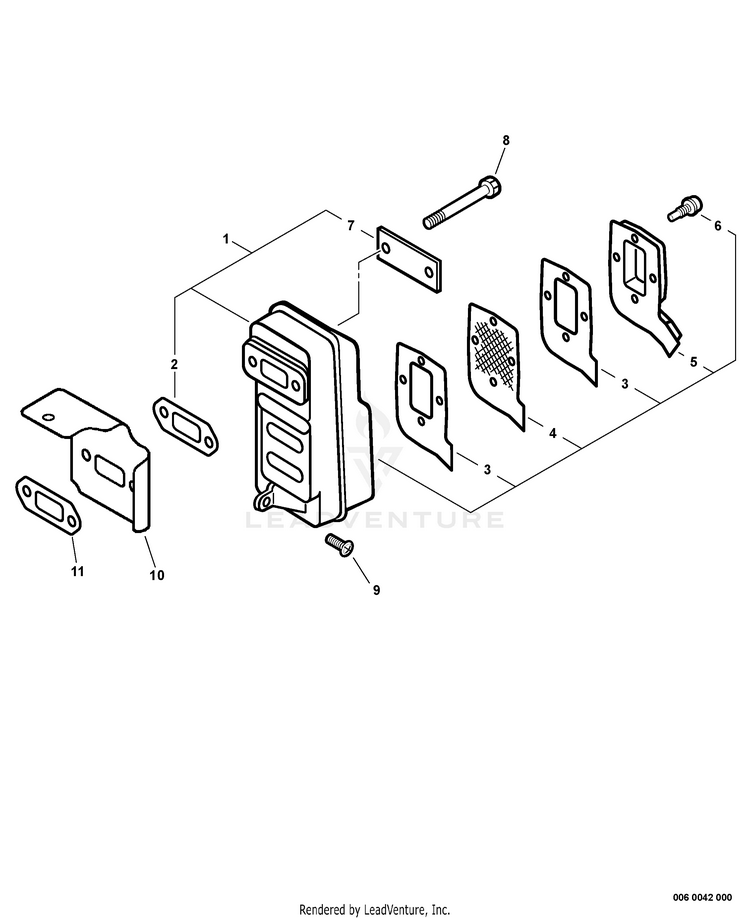

Exhaust

...
...
1
MUFFLER ASSY Includes ITEMS 2-8 ECH-14580021261
...
2
GASKET, MUFFLER Included In GASKET KIT ECH-14551006211
...
3
GASKET, EXHAUST ECH-14586621360
...
4
SCREEN, SPARK ARRESTER ECH-14586221260
...
5
GUIDE, EXHAUST ECH-14580921261
...
6
SCREW 4x14 ECH-90023804014
...
7
PLATE, EYE ECH-14551521061
...
8
BOLT ECH-14588721060
...
9
BOLT 5x20 ECH-90016205020
...
10
COVER, CYLINDER ECH-10157608260
...
11
GASKET, MUFFLER Included In GASKET KIT ECH-14551006211
