Echo PB-46HT S/N: 001001 - 999999 Backpack Blower

Model: PB-46HT S/N: 001001 - 999999

Back To Assemblies

Save Part Not Listed?
product name

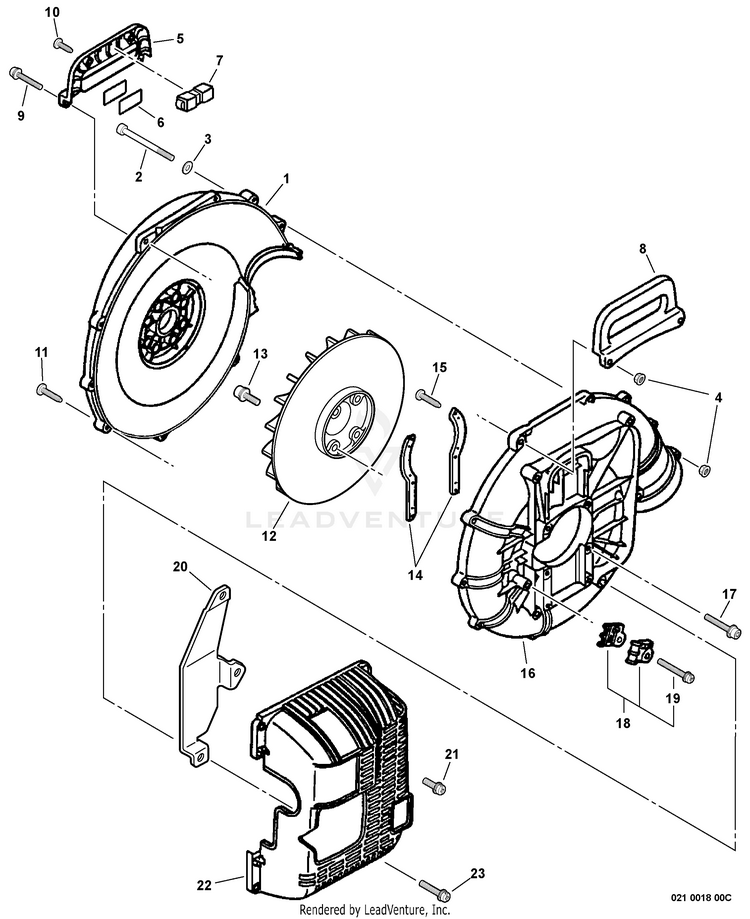

Fan Case, Blower Fan, Engine Cover S/N: 577572 - 999999

...
...
1
CASE, FAN ECH-20011108267
...
2
BOLT 5x60 ECH-90010505060
...
3
WASHER 5.5x12x0.8 ECH-90060300005
...
4
NUT, FLANGE M5 ECH-90051600005
...
5
HANDLE, OUTER GRAY ECH-35111008261
...
6
CUSHION ECH-35133508260
...
7
WEIGHT ECH-35133708260
...
8
HANDLE, INNER GRAY ECH-35101008261
...
9
SCREW 5x45 ECH-90023805045
...
10
SCREW 5x16 ECH-90025305016
...
11
SCREW 5x30 ECH-90025305030
...
12
FAN ECH-20001009861
...
13
BOLT 5x20 ECH-90016205020
...
14
BRACKET, ENGINE ECH-10491308360
...
15
SCREW, TAPPING 3x12 ECH-90024603012
...
16
COVER, FAN - OUTER ECH-20010508260
...
17
SCREW 5x32 ECH-90016205032
...
18
CABLE HOLDER KIT Includes ITEM 19 ECH-17810108260
...
19
SCREW 5x25 ECH-90023805025
...
20
INSULATOR ECH-10027008261
...
21
SCREW 5x10 ECH-90023805010
...
22
COVER, ENGINE ECH-10401208260
...
23
SCREW 5x18 ECH-90023805018
