Echo PB-46HT S/N: 001001 - 999999 Backpack Blower

Model: PB-46HT S/N: 001001 - 999999

Back To Assemblies

Save Part Not Listed?
product name

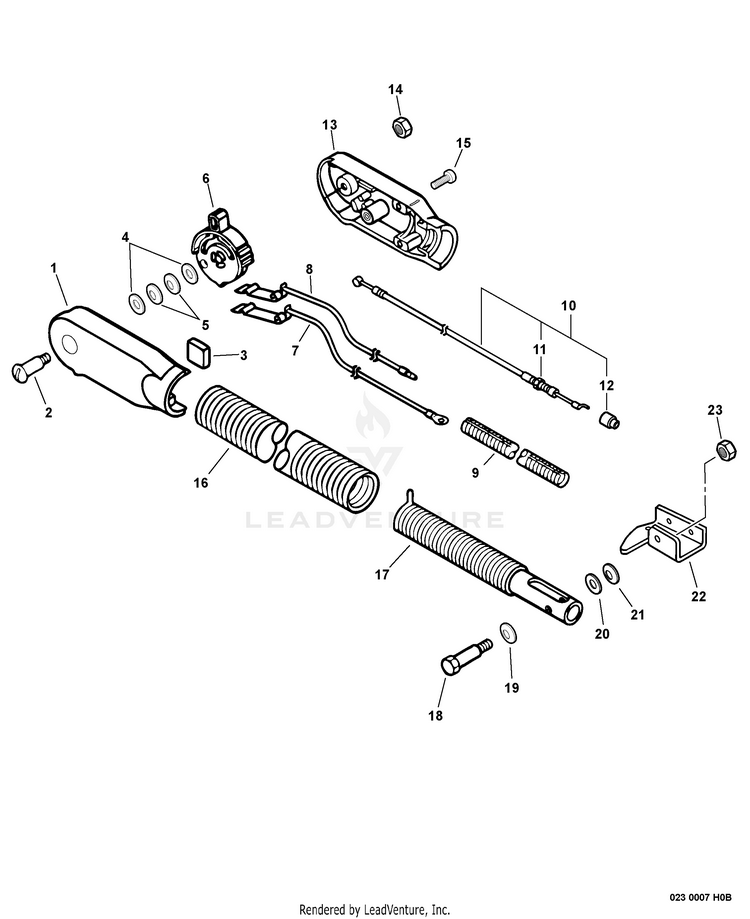

Hip Mount Throttle S/N: 001001 - 595184

...
...
1
GRIP ASSY, THROTTLE ECH-P021003010
...
2
SCREW 4 ECH-60403021060
...
3
PAD, FOAM ECH-10429321060
...
4
WASHER 6.5x15.5x0.6 ECH-69911804560
...
5
WASHER, FRICTION 6.6x14.3 ECH-17816021060
...
6
LEVER, THROTTLE ECH-C453000021
...
7
LEAD - GROUND ECH-16200721601
...
8
LEAD ECH-16200721161
...
9
TUBE, PROTECTIVE - CORRUGATED ECH-16202321061
...
10
CABLE, THROTTLE Includes ITEMS 11-12 ECH-17800121061
...
11
NUT, HEX M6 ECH-90050000006
...
12
CAP, DUST ECH-17808208260
...
13
GRIP ASSY, THROTTLE ECH-P021003010
...
14
NUT, LOCK 4 ECH-90056000004
...
15
SCREW 5 ECH-88995021060
...
16
TUBE, OUTER ECH-17801621160
...
17
SPRING TUBE ASSY ECH-17801621060
...
18
BOLT 6 ECH-43261721060
...
19
WASHER, WAVE ECH-17812921060
...
20
WASHER 8 ECH-69402921060
...
21
WASHER 8 ECH-70101721061
...
22
BRACKET ECH-17816521060
...
23
NUT, 6 ECH-90003010008
