Echo PB-46HT S/N: 001001 - 999999 Backpack Blower

Model: PB-46HT S/N: 001001 - 999999

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

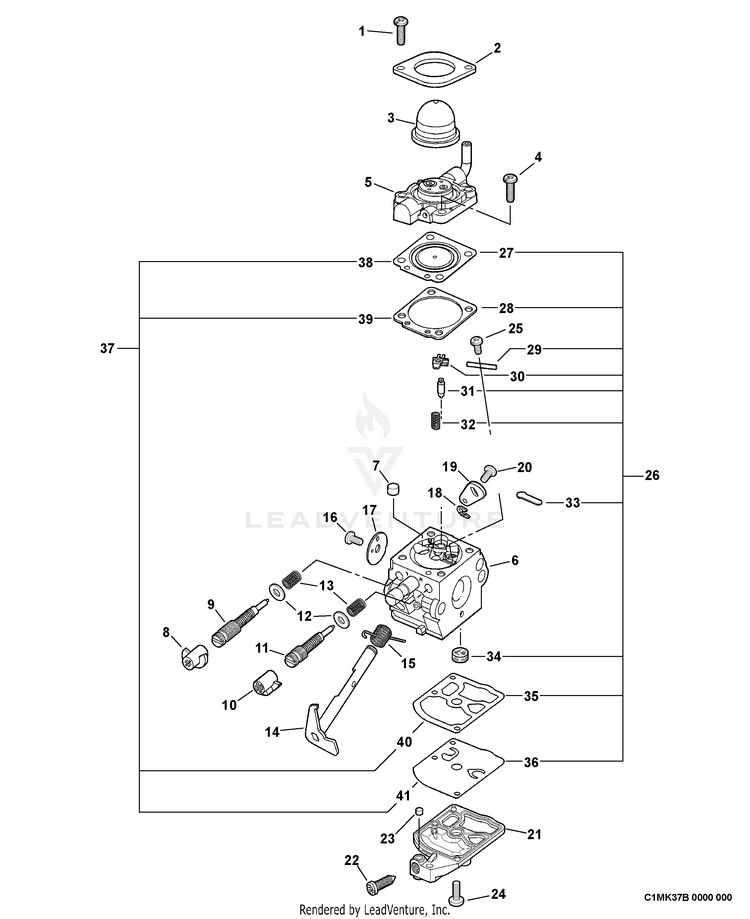

Carburetor -- C1M-K37B

...
...
xx
CARBURETOR C1M-K37D ECH-12520008566
...
1
SCREW ECH-P005000980
...
2
RETAINER, PURGE BULB ECH-12536308360
...
3
BULB, PURGE ECH-P005003120
...
4
SCREW ECH-12531005360
...
5
BODY ASSY, PURGE ECH-12538308360
...
6
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
7
NOZZLE, CHECK VALVE ECH-12537608560
...
8
CAP, LIMITER - WHITE ECH-12532909860
...
9
NEEDLE, LOW SPEED ECH-12531808560
...
10
CAP, LIMITER ECH-12532908560
...
11
NEEDLE, HIGH SPEED ECH-12532008560
...
12
WASHER ECH-12535307760
...
13
SPRING, COIL ECH-125319-42030
...
14
SHAFT ASSY, THROTTLE ECH-P005002040
...
15
SPRING, THROTTLE RETURN ECH-12531308360
...
16
SCREW 3x4.5 ECH-12531451230
...
17
VALVE, THROTTLE PB-46HT/1E ECH-12531608560
...
18
CLIP ECH-125327-13930
...
19
LEVER, THROTTLE ECH-12535008360
...
20
SCREW ECH-12534813930
...
21
COVER, PUMP ECH-12532408360
...
22
SCREW, IDLE ADJUST ECH-12533413930
...
23
PIECE, FRICTION ECH-12537813930
...
24
SCREW ECH-12531013930
...
25
SCREW ECH-12533913930
...
26
REPAIR KIT, CARBURETOR RB-203 Includes ITEMS 27-36 ECH-P005002560
...
27
DIAPHRAGM, METERING ECH---
...
28
GASKET, DIAPHRAGM ECH---
...
29
PIN, METERING LEVER ECH---
...
30
LEVER, METERING ECH---
...
31
VALVE, INLET NEEDLE ECH---
...
32
SPRING, METERING LEVER ECH---
...
33
PLUG, WELCH ECH---
...
34
STRAINER ECH---
...
35
GASKET, PUMP ECH---
...
36
DIAPHRAGM, PUMP ECH---
...
37
GASKET / DIAPHRAGM KIT Includes ITEMS 38-40 ECH-12530308360
...
38
DIAPHRAGM, METERING ECH---
...
39
GASKET, DIAPHRAGM ECH---
...
40
GASKET, PUMP ECH---
...
41
DIAPHRAGM, PUMP ECH---
