Echo PB-46HT S/N: 001001 - 999999 Backpack Blower

Model: PB-46HT S/N: 001001 - 999999

Back To Assemblies

Save Part Not Listed?
product name

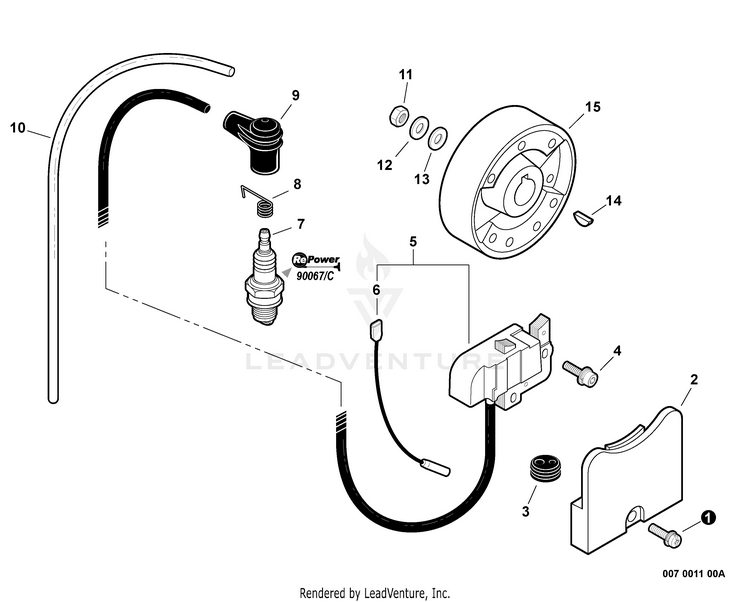

Ignition

...
...
2
COVER, DUST ECH-15912908261
...
1
SCREW 5x18 ECH-90023805018
...
3
GROMMET ECH-15111204630
...
4
SCREW 5x18 ECH-90023805018
...
5
IGNITION MODULE Includes ITEM 6 ECH-15660108361
...
6
LEAD - GROUND ECH-16202108260
...
7
SPARK PLUG - BPM7Y Included In RePower KIT ECH-99944500071R
...
7
SPARK PLUG - BPMR7A CANADA MODELS ECH-15901010230
...
8
TERMINAL, SPARK PLUG ECH-15901103432
...
9
CAP, SPARK PLUG ECH-15901203433
...
10
TUBE, VINYL 6.3x8x380 ECH-15611106160
...
11
NUT 10 ECH-90050100010
...
12
SCREW ECH-900605-00010
...
13
WASHER M10 ECH-90060200010
...
14
KEY, WOODRUFF 3x14 ECH-90032303014
...
15
FLYWHEEL ECH-15680006161
...
16
TUNE-UP KIT ECH-90067
...
16
TUNE-UP KIT ECH-90067C
