Echo PB-4600 S/N: 059919 - 999999 Backpack Blower

Model: PB-4600 S/N: 059919 - 999999

Back To Assemblies

Save Part Not Listed?
product name

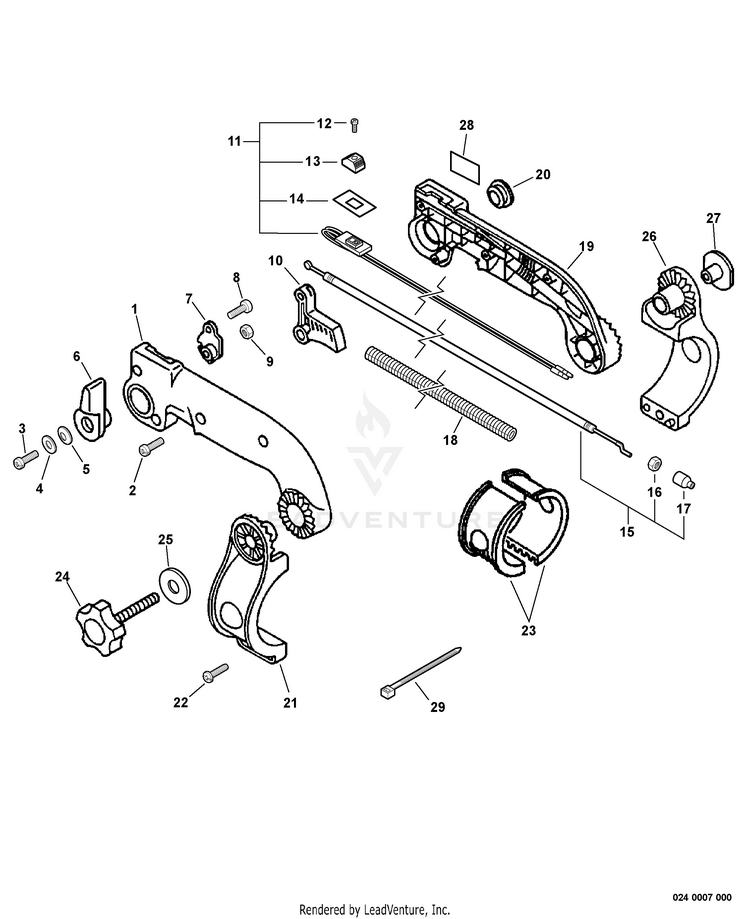

Tube Mount Throttle

...
...
1
CONTROL HANDLE - LEFT ECH-35131507560
...
2
SCREW 4x22 ECH-90025604022
...
3
SCREW 6x20 ECH-90023506020
...
4
WASHER, SPRING 6 ECH-90060500006
...
5
WASHER 6.5x13x1 ECH-90060300006
...
6
CONTROL, THROTTLE ECH-17805407560
...
7
BRACKET, THROTTLE ECH-17812307561
...
8
SCREW 4x10 ECH-90024504010
...
9
NUT, HEX M6 ECH-90050000006
...
10
TRIGGER, THROTTLE ECH-17801007561
...
11
SWITCH, ON-OFF Includes ITEMS 12-14 ECH-16340008262
...
12
SCREW 3x10 ECH-90022003010
...
13
SWITCH, ON-OFF ECH-A440000382
...
14
LABEL - STOP ECH-89015712330
...
15
CABLE, THROTTLE Includes ITEMS 16-17 ECH-17800108360
...
16
NUT, HEX M6 ECH-90050000006
...
17
CAP, DUST ECH-17808208260
...
18
TUBE, FLEXIBLE 7x790 ECH-V475000000
...
19
CONTROL HANDLE - RIGHT ECH-35131107560
...
20
PLUG ECH-35114607560
...
21
HANDLE BRACKET KIT ECH-P021014110
...
22
SCREW, TAPPING 5x20 ECH-90025305020
...
23
COLLAR ECH-21001907560
...
24
KNOB, SCREW ECH-V299000630
...
25
WASHER ECH-17851607560
...
26
HANDLE BRACKET KIT ECH-P021014110
...
27
NUT ECH-17802108260
...
28
LABEL - ON-OFF ECH-89015706560
...
29
STRAP, CABLE - LARGE ECH-17812109860
