Echo PB-400E S/N: 249242 - 999999 Backpack Blower

Model: PB-400E S/N: 249242 - 999999

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

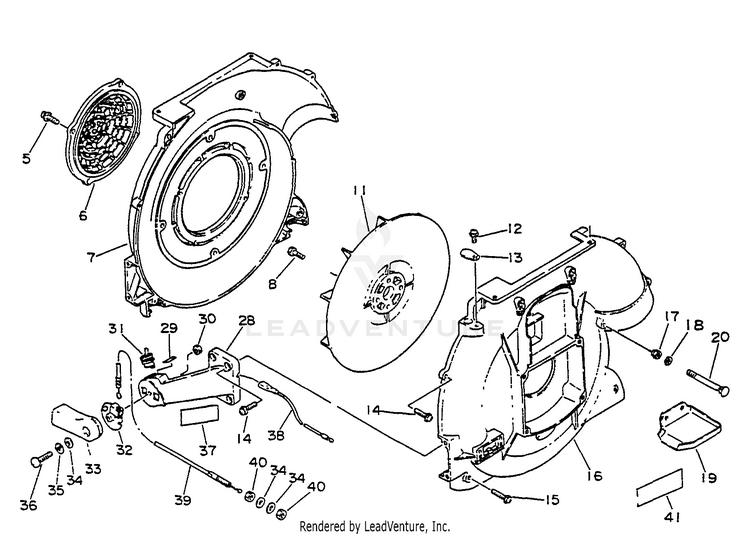

Fan, Housings

...
...
5
BOLT ECH-90014606014
...
6
GRID, FAN CASE ECH-200124-01111
...
7
COVER, FAN - INNER - ORANGE ECH-20010500761
...
8
BOLT - 6x16 ECH-90014206016
...
11
FAN ECH-20001001110
...
12
SCREW 5x10 ECH-90024205010
...
13
PLUG ECH-36302903210
...
14
SCREW 5x22 ECH-90024205022
...
15
SCREW 5x25 ECH-90024205025
...
16
COVER, FAN - OUTER ECH-20010700762
...
17
NUT - 5 - CAP ECH-90053000005
...
18
SCREW 5x25 ECH-90024205025
...
19
BRACKET, MUFFLER COVER ECH-14571502260
...
20
BOLT ECH-21041601110
...
28
MOUNT, THROTTLE LEVER ECH-17812200761
...
29
LABEL - ON-OFF ECH-89015711130
...
30
NUT, HEX M6 ECH-90050000006
...
31
IGNITION SWITCH ASSY ECH-16340004521
...
32
BRACKET ECH-17812300760
...
33
CONTROL, THROTTLE ECH-17801000661
...
34
WASHER 6 ECH-90060200006
...
35
WASHER, SPRING 6 ECH-90060500006
...
36
SCREW 6x25 ECH-90022006025
...
37
LABEL - CAUTION ECH-89016800860
...
38
LEAD ECH-15062102260
...
39
CABLE, THROTTLE ECH-17800100761
...
40
NUT M6 ECH-90050200006
...
41
LABEL - NOISE ECH-89017600760
