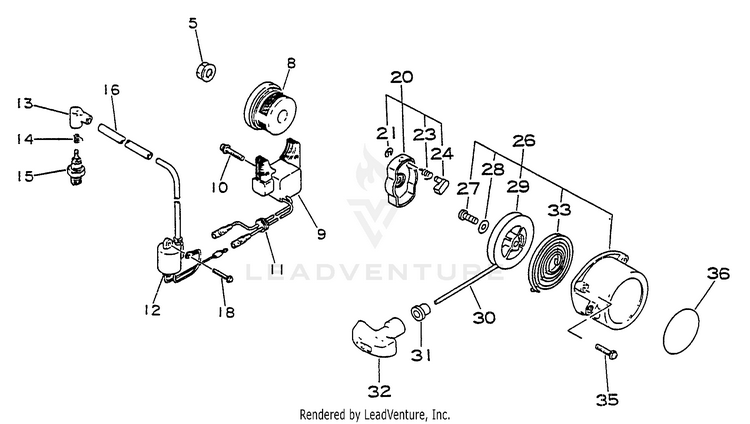

Echo PB-400E S/N: 249242 - 999999 Backpack Blower

Model: PB-400E S/N: 249242 - 999999

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Ignition, Starter

...
...
5
NUT, FLANGE 10x1.25 ECH-90051900010
...
8
FLYWHEEL ECH-15680002111
...
9
COIL, IGNITION ECH-15660102912
...
10
SCREW 5x25 ECH-90024205025
...
11
GROMMET ECH-15061402910
...
12
COIL, IGNITION ECH-15662602111
...
13
CAP, SPARK PLUG ECH-15901201620
...
14
TERMINAL, SPARK PLUG ECH-15901103432
...
15
FLYWHEEL ECH-159010-00330
...
16
TUBE, INSULATOR ECH-15011101110
...
18
SCREW 4x25 ECH-90024204025
...
20
PAWL CATCHER ASSY ECH-17720202110
...
21
E-RING 4 ECH-90070000004
...
23
SPRING, RETURN ECH-17723440630
...
24
PAWL, STARTER ECH-17721840630
...
26
STARTER ASSY ECH-17720002110
...
27
SCREW ECH-17723640630
...
28
WASHER ECH-17721441030
...
29
REEL, ROPE ECH-17721543130
...
30
ROPE, STARTER 4.0x880 RePower BULK OPTION: 99944450000 ECH-17722601110
...
31
GUIDE, ROPE ECH-17722742030
...
32
GRIP, STARTER ECH-17722811120
...
33
SPRING, RECOIL ECH-17722040630
...
35
SCREW 5x16 ECH-90024205016
...
36
LABEL - ECHO ECH-89011849330
...
xx
BULK STARTER ROPE - 4.0 MMx61 M ECH-99944450000
