Echo PB-400 S/N: 054523 - 999999 Backpack Blower

Model: PB-400 S/N: 054523 - 999999

Back To Assemblies

Save Part Not Listed?
product name

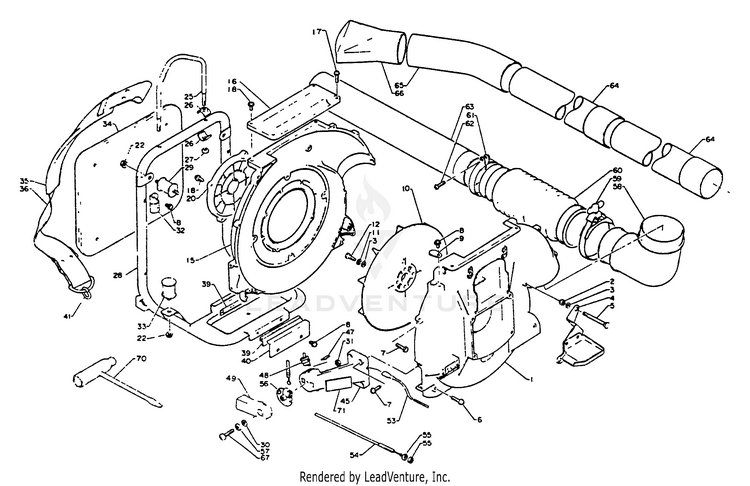

Fan Case,Backpack Band,Frame,Throttle Ctrl,Switch,Blowing Pipe,Tools

...
...
1
COVER, FAN - OUTER ECH-20010700762
...
2
NUT - 5 - CAP ECH-90053000005
...
3
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
4
BRACKET, MUFFLER COVER ECH-14570500761
...
5
BOLT ECH-21041601110
...
6
SCREW 5x25 ECH-90024205025
...
7
SCREW 5x22 ECH-90024205022
...
8
SCREW 5x10 ECH-90024205010
...
9
PLUG ECH-20013600760
...
10
FAN ECH-20001001110
...
11
WASHER, SPRING 5 ECH-90060500005
...
12
BOLT - 5x16 ECH-90010005016
...
15
COVER, FAN - INNER - ORANGE ECH-20010500761
...
16
PLATE ECH-20014000760
...
17
SCREW 6x20 ECH-90024206020
...
18
SCREW 6x15 ECH-90024206015
...
20
GRID, FAN CASE ECH-200124-01111
...
22
NUT, FLANGE M6 ECH-90051800006
...
25
ARM ECH-30061000760
...
26
BRACKET ECH-30061200760
...
27
NUT, LOCK M6 ECH-90056250006
...
28
FRAME, BACKPACK ECH-30000500761
...
29
CUSHION ECH-20091001110
...
30
WASHER 6.5x11.5x0.8 ECH-90060000006
...
31
NUT, HEX M6 ECH-90050000006
...
32
BRACKET, CUSHION ECH-30022000760
...
33
CUSHION ECH-20091601110
...
34
CUSHION, BACKPACK ECH-30010500761
...
xx
HARNESS ASSY, BACKPACK INCLUDES ITEMS 35-36 ECH-30030102260
...
35
HARNESS ECH-30032201110
...
36
HARNESS ASSY, BACKPACK ECH-30030102260
...
39
MODIFICATION KIT ECH-88990002261
...
40
BRACKET, FUEL TANK ECH-13191000760
...
41
RING, HARNESS ECH-30031901611
...
45
MOUNT, THROTTLE LEVER ECH-17812200761
...
47
LABEL - ON-OFF ECH-89015711130
...
48
IGNITION SWITCH ASSY ECH-16340004521
...
49
CONTROL, THROTTLE ECH-17801000661
...
53
LEAD - GROUND ECH-15012100761
...
54
CABLE, THROTTLE ECH-17800100761
...
55
NUT M6 ECH-90050200006
...
56
BRACKET ECH-17812300760
...
57
WASHER ECH-90060700006
...
58
ELBOW ECH-21001101160
...
67
SCREW 6x25 ECH-90022006025
...
59
CLAMP 75-85 ECH-V495001171
...
60
TUBE, FLEXIBLE ECH-21001201112
...
61
CLAMP KIT ECH-21040001110
...
62
SCREW 5x20 ECH-90022005020
...
63
TUBE, BLOWER - STRAIGHT TWIST LOCK PIPES FOR PB-400 (Refer to Parts Bulletin 86-014) ECH-21200501160
...
64
TUBE, BLOWER - STRAIGHT ITEM NO LONGER AVAILABLE ECH-21001501160
...
65
TUBE, BLOWER - CURVED TWIST LOCK PIPES FOR PB-400 (Refer to Parts Bulletin 86-014) ECH-21002301060
...
70
T-WRENCH 10x19 MM ECH-89541039132
...
71
LABEL - CAUTION ECH-89016800860
...
66
NOZZLE - FAN HEAD OPTIONAL ECH-21003101060
...
74
LABEL - ECHO ECH-89011804262
...
75
LABEL - NOISE ECH-89017600760
...
xx
PBAV-400 VACUUM Accessory ECH-PBAV400
...
xx
BAG, VACUUM Accessory ECH-1960001
...
xx
PBAM-400 MISTER Accessory ECH-PBAM-400
...
xx
RAIN GUTTER KIT Accessory ECH-99944100010
...
xx
BLOWER TUBE HELPER HANDLE Accessory ECH-99944100020
