Echo PB-400 S/N: 054523 - 999999 Backpack Blower

Model: PB-400 S/N: 054523 - 999999

Back To Assemblies

Save Part Not Listed?
product name

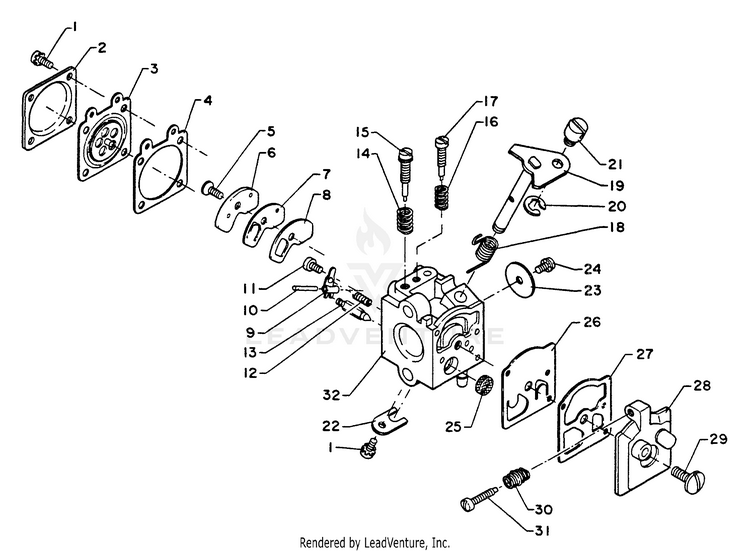

Carburetor

...
...
xx
CARBURETOR - WA-55B Consists of 1 thru 32 ECH-12300000762
...
1
SCREW Included in Kwik Kit P/N 12310004930 ECH---
...
2
COVER, MET. DIA. ECH-P003006890
...
3
DIAPHRAGM, METERING Included in Kwik Kit P/N 12310004930 and Diaphragm Kit P/N 12310103930 ECH---
...
4
GASKET, METERING Included in Kwik Kit P/N 12310004930 and Diaphragm Kit P/N 12310103930 ECH---
...
5
SCREW, CIRCUIT PLATE Included in Kwik Kit P/N 12310004930 ECH---
...
6
PLATE, CIRCUIT ECH-12316603930
...
------------------
DIAPHRAGM, CIRCUIT PLATE Included in Kwik Kit P/N 12310004930 and Diaphragm Kit P/N 12310103930 ECH---
...
8
GASKET, CIRCUIT PLATE Included in Kwik Kit P/N 12310004930 and Diaphragm Kit P/N 12310103930 ECH---
...
9
LEVER, METERING Included in Kwik Kit P/N 12310004930 ECH---
...
10
PIN, METERING LEVER Included in Kwik Kit P/N 12310004930 ECH---
...
11
SCREW, METERING LEVER PIN Included in Kwik Kit P/N 12310004930 ECH---
...
12
SPRING, METERING LEVER Included in Kwik Kit P/N 12310004930 ECH---
...
13
VALVE, INLET NEEDLE Included in Kwik Kit P/N 12310004930 ECH---
...
------------------
SPRING, NEEDLE Included in Kwik Kit P/N 12310004930 ECH---
...
15
NEEDLE, HIGH SPEED ECH-12312000760
...
16
SPRING, IDLE ADJUST Included in Kwik Kit P/N 12310004930 ECH---
...
17
NEEDLE, IDLE ECH-12311804420
...
18
SPRING, THROTTLE RETURN ECH-12311309660
...
19
SHAFT, THROTTLE ECH-12311705020
...
20
RING, RETAINING ECH-12312710630
...
21
SWIVEL ECH-12317204320
...
22
CLIP, THROTTLE SHAFT ECH-12312703930
...
23
VALVE, THROTTLE ECH-12311603930
...
24
SCREW ECH-12311403930
...
25
STRAINER Included in Kwik Kit P/N 12310004930 ECH---
...
------------------
DIAPHRAGM, PUMP Included in Kwik Kit P/N 12310004930 and Diaphragm Kit P/N 12310103930 ECH---
...
------------------
GASKET, PUMP Included in Kwik Kit P/N 12310004930 and Diaphragm Kit P/N 12310103930 ECH---
...
28
COVER, PUMP ECH-12312400760
...
29
SCREW, PUMP COVER ECH-P003006850
...
30
SPRING, IDLE ADJUST ECH-12313311130
...
31
SCREW, IDLE ADJUST ECH-12313406530
...
32
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
xx
REPAIR KIT, CARBURETOR ECH-12310004930
...
xx
GASKET / DIAPHRAGM KIT ECH-12310103930
