Echo PB-400 S/N: 054523 - 999999 Backpack Blower

Model: PB-400 S/N: 054523 - 999999

Back To Assemblies

Save Part Not Listed?
product name

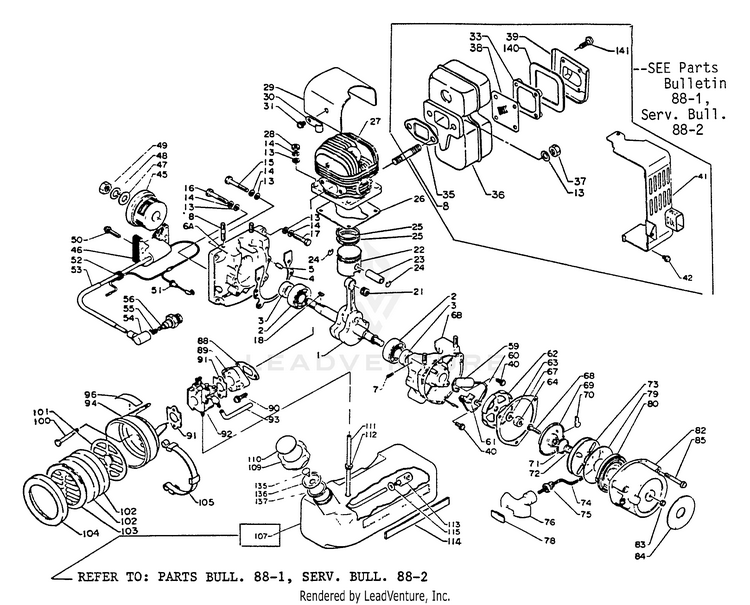

Engine,Intake,Exhaust,Crankcase,AirCleaner,Strtr,Ignition,Exh,Fuel Sys

...
...
1
CRANKSHAFT ASSY ECH-10010001111
...
2
BEARING, BALL 6202 ECH-90081036202
...
3
SEAL, OIL 15 ECH-10021300310
...
4
GASKET, CRANKCASE Use Gasket Kit ECH---
...
5
PIN, LOCATING 5x10 ECH-10021502830
...
6
CRANKCASE KIT Consists of 6A, 6B and 7 ECH-10020000760
...
6A
CRANKCASE KIT See Ref No. 6, Crankcase set, P/N 10020000760 ECH-10020000760
...
6B
CRANKCASE KIT See Ref No. 6, Crankcase set, P/N 10020000760 ECH-10020000760
...
7
CONNECTOR ECH-13011312330
...
8
STUD ECH-10025400130
...
13
WASHER 6.5x11.5x0.8 ECH-90060000006
...
14
WASHER, SPRING 6 ECH-90060500006
...
15
BOLT ECH-10024401111
...
16
BOLT ECH-10024401111
...
17
BOLT 6x25 ECH-90010006025
...
18
KEY ECH-10014200310
...
21
BEARING, NEEDLE 10 ECH-10001212331
...
22
PISTON KIT ECH-10000002412
...
23
PIN, PISTON ECH-10001300410
...
24
RING, SNAP 8 ECH-10001500120
...
25
RING, PISTON ECH-10001101110
...
26
GASKET, CYLINDER ECH-10101003461
...
27
CYLINDER KIT ECH-10100101110
...
28
NUT, HEX M6 ECH-90050000006
...
29
COVER, CYLINDER ECH-10151401110
...
30
CLIP, CORD ECH-15911001110
...
31
BOLT 6x10 ECH-90010006010
...
33
SEAT, SCREEN ECH-14588200761
...
35
GASKET, MUFFLER ECH-14551000762
...
36
MUFFLER ECH-14580600762
...
37
NUT, LOCK 6 ECH-90056000006
...
38
SCREEN KIT ECH-14580100761
...
39
GUIDE, EXHAUST ECH-14586300763
...
40
SCREW - 4x10 ECH-90024244010
...
41
COVER, MUFFLER ECH-14587100763
...
42
SCREW 5x14 ECH-90024205014
...
45
FLYWHEEL Optional C. D. I. Kit; See Parts Bull. 88-12P. ECH-15020001110
...
46
COIL, IGNITION Optional C. D. I. Kit; See Parts Bull. 88-12P. ECH-15012600760
...
47
WASHER ECH-10013601110
...
48
WASHER, SPRING ECH-10013301110
...
49
NUT ECH-10013401110
...
50
SCREW 5x25 ECH-90024205025
...
51
GROMMET ECH-15011400310
...
52
GROMMET ECH-15111204630
...
53
TUBE, INSULATOR ECH-15011101110
...
54
CAP, SPARK PLUG ECH-15901201620
...
55
TERMINAL, SPARK PLUG ECH-15901103432
...
56
FLYWHEEL ECH-159010-00330
...
59
CONDENSER Optional C. D. I. Kit; See Parts Bull. 88-12P. ECH-15012700910
...
60
CLIP, CORD ECH-15911201110
...
61
CONTACT POINT SET Optional C. D. I. Kit; See Parts Bull. 88-12P. ECH-15010100910
...
62
PAWL CATCHER ECH-17721000910
...
63
WASHER PB-400 ECH-90061700010
...
64
NUT C-R ECH-10014700910
...
67
GASKET, STARTER ECH-10061501110
...
xx
STARTER ASSY, RECOIL Consists of 68 thru 80, 82 and 83 ECH-17720001110
...
68
SCREW ECH-17723601110
...
69
PLATE, FRICTION ECH-17721100910
...
70
RATCHET ECH-17721800910
...
71
SPRING ECH-17723400910
...
72
SPRING ECH-17723300910
...
73
REEL, ROPE ECH-17721501110
...
74
ROPE, STARTER 4.0x880 RePower BULK OPTION: 99944450000 ECH-17722601110
...
75
GUIDE, ROPE ECH-17722705530
...
76
GRIP, STARTER ECH-17722801110
...
78
COVER, HANDLE ECH-17724401110
...
79
PLATE, STARTER ECH-17723500910
...
80
SPRING, RECOIL ECH-17722001110
...
82
CASE, STARTER ECH-17723201110
...
83
NUT - 5 - CAP ECH-90053000005
...
84
LABEL - ECHO ECH-89011849330
...
85
SCREW 5x42 ECH-90024205042
...
88
GASKET, INTAKE ECH-13001000763
...
89
INSULATOR ECH-13000700760
...
90
SCREW 6x25 ECH-90024206025
...
91
GASKET, CARBURETOR ECH-13001606232
...
92
CARBURETOR - WA-55B ECH-12300000762
...
93
PIPE 3*6*65 ECH-V471001881
...
xx
FILTER ASSY, AIR Consists of 94, 101 thru 105 ECH-13030000766
...
94
AIR CLEANER ECH-13030700764
...
101
RETAINER, AIR FILTER ECH-13031900760
...
102
FILTER, AIR ECH-13031000760
...
103
COVER, AIR FILTER ECH-13031304620
...
104
COVER, AIR FILTER ECH-13034104620
...
105
CLAMP ECH-13042500761
...
96
LABEL - CHOKE ECH-X506000010
...
100
SCREW 5x50 ECH-90022005050
...
107
MODIFICATION KIT ECH-88990002261
...
xx
CAP ASSY Consists of 109, 110, 135 thru 137 ECH-P100006490
...
109
CAP ASSY ECH-13100403910
...
110
LABEL - FUEL MIX ECH-89014706160
...
135
VALVE ECH-A356000070
...
136
HOLDER, VENT ECH-13101503331
...
137
GASKET, FUEL CAP, PBAM-400 ECH-13101604632
...
110
LABEL - FUEL MIX ECH-89014706160
...
111
PIPE, FUEL W/GROMMET 3x5x250L ECH-13200700760
...
112
GROMMET ECH-13211511131
...
113
FILTER, FUEL ECH-A369000470
...
114
LABEL - NAME ECH-89013500760
...
115
WASHER 5.5x12x0.8 ECH-90060300005
...
140
GASKET ECH-14586600760
...
141
SCREW 4x14 ECH-90024204014
