Echo PB-300E S/N: 0000000 - 0049617 Backpack Blower

Model: PB-300E S/N: 0000000 - 0049617

Back To Assemblies

Save Part Not Listed?
product name

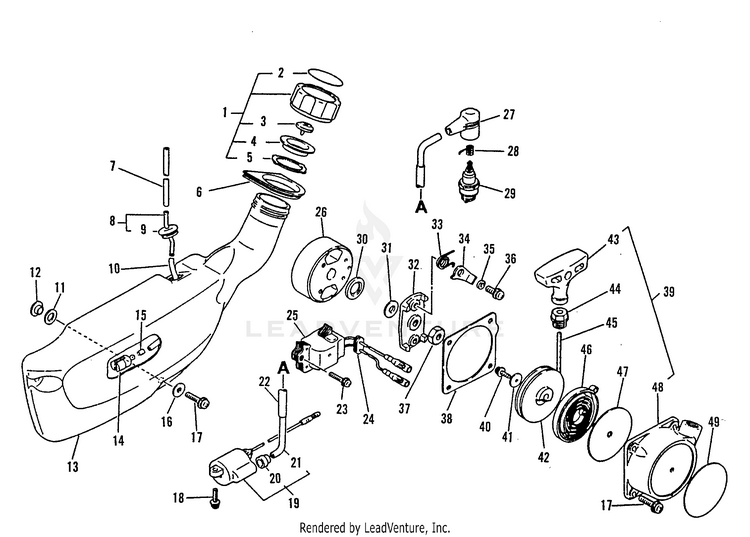

Fuel System, Ignition, Starter

...
...
1
CAP ASSY INCLUDES ITEMS 2 - 5 ECH-P100006490
...
2
LABEL - FUEL MIX ECH-89014706160
...
3
VENT ASSY ECH-13131406320
...
4
HOLDER, VENT ECH-A358000000
...
5
GASKET, FUEL CAP ECH-13101621230
...
6
BUSHING ECH-13103803460
...
7
PIPE, FUEL ECH-13201203460
...
8
CONNECTOR ECH-13200503460
...
9
GROMMET ECH-13211521330
...
10
PIPE, FUEL ECH-13201204260
...
11
CUSHION ECH-13192502310
...
12
SPACER ECH-13191603460
...
13
TANK, FUEL ECH-13101007460
...
14
FILTER, FUEL ECH-A369000480
...
15
VALVE, CHECK ECH-13200115030
...
16
WASHER 5.5x16x0.8 ECH-13191103460
...
17
SCREW 5x22 ECH-90024205022
...
18
SCREW 4x14 ECH-90024204014
...
19
COIL, IGNITION INCLUDES ITEMS 20 & 21 ECH-15660203460
...
20
COVER ECH-15663203460
...
21
CORD, HIGH TENSION ECH-15663103460
...
22
PIPE ECH-15661103460
...
23
SCREW 4x20 ECH-90024204020
...
24
GROMMET ECH-15611403360
...
25
COIL, IGNITION ECH-15660103460
...
26
FLYWHEEL ECH-15680003461
...
27
CAP, SPARK PLUG ECH-15901203433
...
28
TERMINAL, SPARK PLUG ECH-15901103432
...
29
SPARK PLUG - BPMR7A ECH-15901010230
...
30
WASHER ECH-10013503460
...
31
WASHER 8.5x16x1.2 ECH-90060000008
...
32
PAWL CATCHER ECH-17721006530
...
33
SPRING ECH-17723406530
...
34
RATCHET ECH-17721806530
...
35
SPACER 5.2x8x2.1 ECH-17724704630
...
36
SCREW 5x40 ECH-90024205040
...
37
NUT ECH-90051000008
...
38
GASKET, STARTER ECH-10061504211
...
39
STARTER ASSY INCLUDES ITEMS 40 - 48 ECH-17720007460
...
40
SCREW 4x10 ECH-90024204010
...
41
WASHER 4.1x15.5x1T ECH-17721404630
...
42
REEL, ROPE ECH-17721515133
...
43
GRIP, STARTER ECH-17722806530
...
44
GUIDE, ROPE ECH-17722705020
...
45
ROPE, STARTER 3.0x850 RePower BULK OPTION: 99944445000 ECH-17722606530
...
46
SPRING, RECOIL ECH-17722006530
...
47
PLATE ECH-17722116530
...
48
CASE, STARTER ECH-17720907460
...
49
LABEL - ECHO ECH-89011849330
