Echo PB-300E S/N: 0000000 - 0049617 Backpack Blower

Model: PB-300E S/N: 0000000 - 0049617

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Engine, Crankcase

...
...
1
CYLINDER ECH-10101103460
...
2
BOLT 5x20 ECH-90016205020
...
3
SCREW 5x10 ECH-90024205010
...
4
COVER, CYLINDER ECH-10151403460
...
5
SCREW 4x14 ECH-90024204014
...
6
GASKET, CYLINDER ECH-10101003461
...
7
RING, PISTON ECH-10001105731
...
8
SCREW 4x12 ECH-90024204012
...
9
RING, SNAP 8 ECH-10001500120
...
10
PISTON KIT ECH-P021034330
...
11
PIN, PISTON ECH-10001303460
...
12
BEARING, NEEDLE 10 ECH-10001212331
...
13
KEY ECH-90032503020
...
14
CRANKCASE SET Includes ITEM 15 ECH-10020003460
...
15
PIN, LOCATING 4 ECH-V622000020
...
16
SEAL, OIL 18 ECH-10021302830
...
17
RING, SNAP 35 ECH-90070200035
...
18
BEARING, BALL 6202 ECH-90081036202
...
19
CRANKSHAFT ECH-10010003460
...
20
GASKET, CRANKCASE Use Gasket Kit P/N 88900003461 ECH---
...
21
SCREW 5x22 ECH-90024205022
...
22
SCREW 5x30 ECH-90024205030
...
23
SEAL, OIL 15 ECH-10021300310
...
xx
GASKET KIT ECH-88900003461

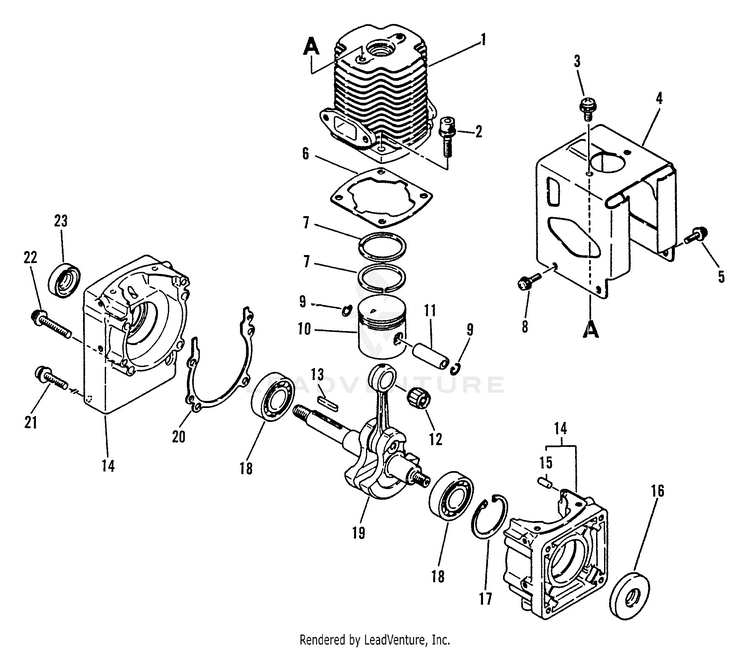

Schematic Image Zoomed
