Echo PB-300E S/N: 0000000 - 0049617 Backpack Blower

Model: PB-300E S/N: 0000000 - 0049617

Back To Assemblies

Save Part Not Listed?
product name

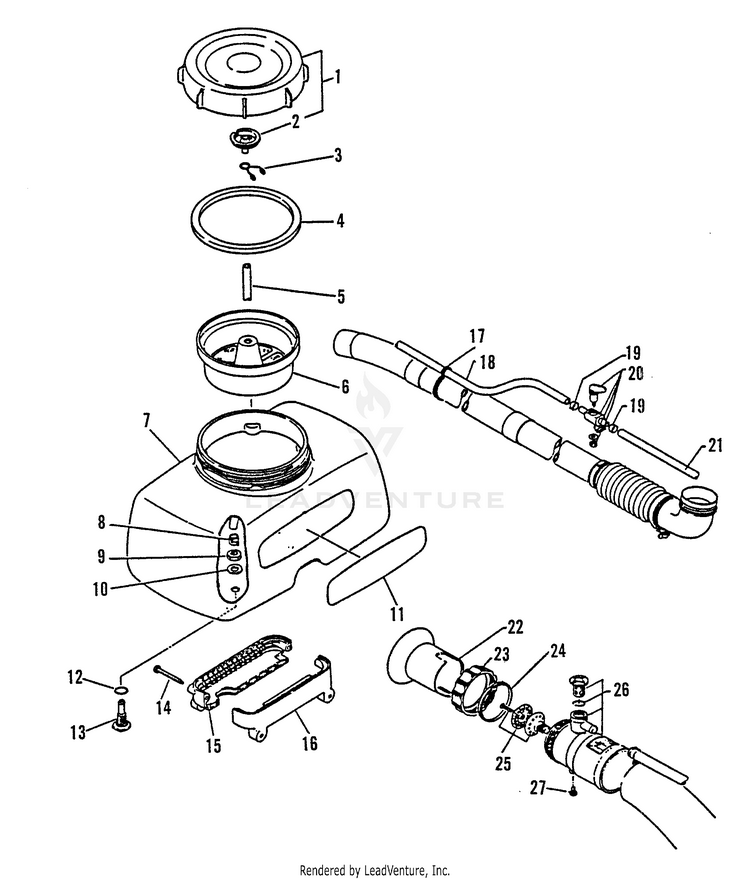

Misting Attch

...
...
1
CAP, CHEMICAL TANK Includes ITEM 2 ECH-25000102310
...
2
CONNECTOR, PIPE ECH-25001300310
...
3
CLIP 10.5 MM ECH-13201314010
...
4
GASKET, TANK ECH-E113000180
...
5
PIPE, INNER PRESSURE 7x11x400BL ECH-36301400310
...
6
FILTER ECH-25421010510
...
7
TANK, CHEMICAL Includes ITEM 11 ECH-25000003460
...
8
CLIP 10.5 MM ECH-13201314010
...
9
NUT 12 ECH-36301900310
...
10
WASHER 12 ECH-V309000170
...
11
LABEL - ECHO ECH-89013801110
...
12
O-RING 16 MM ECH-90072000016
...
13
CONNECTOR, PIPE ECH-36301703460
...
14
SCREW 5x50 ECH-90024905050
...
15
HOLDER, TANK ECH-25091003460
...
16
HOLDER, TANK ECH-25090803460
...
17
CLIP, TUBE 55 ECH-35791100111
...
18
PIPE ECH-35701103460
...
19
CLAMP ECH-357023-01110
...
20
VALVE ECH-358100-01110
...
21
HOSE ECH-35701203460
...
21
NOZZLE ASSY INCLUDES ITEMS 22 - 27 ECH-212500-01111
...
22
COLLAR ECH-212515-01110
...
23
NUT ECH-212514-01110
...
24
RING ECH-212513-01110
...
25
NOZZLE ECH-222000-01110
...
26
ADJUSTER, VOLUME ECH-21250101111
...
27
SCREW 5x12 ECH-90024605012
