Echo PB-255 S/N: P06213001001 - P06213999999 Handheld Blower

Model: PB-255 S/N: P06213001001 - P06213999999

Back To Assemblies

Save Part Not Listed?
product name

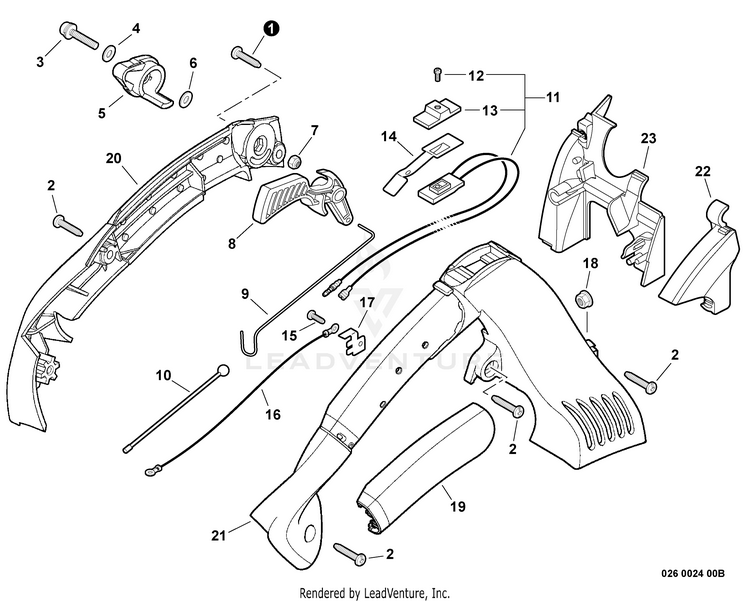

Control Handle, Switch, Throttle Cable

...
...
1
SCREW 5x25 ECH-90025305025
...
2
SCREW, TAPPING 5x20 ECH-90025305020
...
3
SCREW 5x25 ECH-90023805025
...
4
WASHER 5.5x12x0.8 ECH-90060300005
...
5
LEVER, THROTTLE ECH-C453000260
...
6
WASHER 5.5x12x0.8 ECH-90060300005
...
7
NUT, LOCK M5 ECH-90056250005
...
8
TRIGGER, THROTTLE ECH-C450000241
...
9
ROD, THROTTLE ECH-C454000131
...
10
CABLE, THROTTLE ECH-V431000000
...
11
SWITCH ASSY, ON-OFF Includes ITEMS 12-13 ECH-P021045330
...
12
SCREW 3x10 ECH-9154503010
...
13
KNOB, SWITCH - ORANGE ECH-A444000020
...
14
TERMINAL ECH-V486000110
...
15
SCREW 4x10 ECH-90025304010
...
16
LEAD - GROUND ECH-V485000370
...
17
TERMINAL, GROUND ECH-V486000120
...
18
NUT, FLANGE M5 ECH-V263000070
...
19
GRIP, HANDLE ECH-C412000150
...
20
HANDLE, CONTROL - LEFT ECH-C411000023
...
21
HANDLE, CONTROL - RIGHT ECH-C400000491
...
22
COVER, THROTTLE ECH-C459000010
...
23
COVER, CYLINDER - NYLON ECH-A160000830
