Echo PB-252 S/N: P35720001001 - P35720999999 Handheld Blower

Model: PB-252 S/N: P35720001001 - P35720999999

Back To Assemblies

Save Part Not Listed?
product name

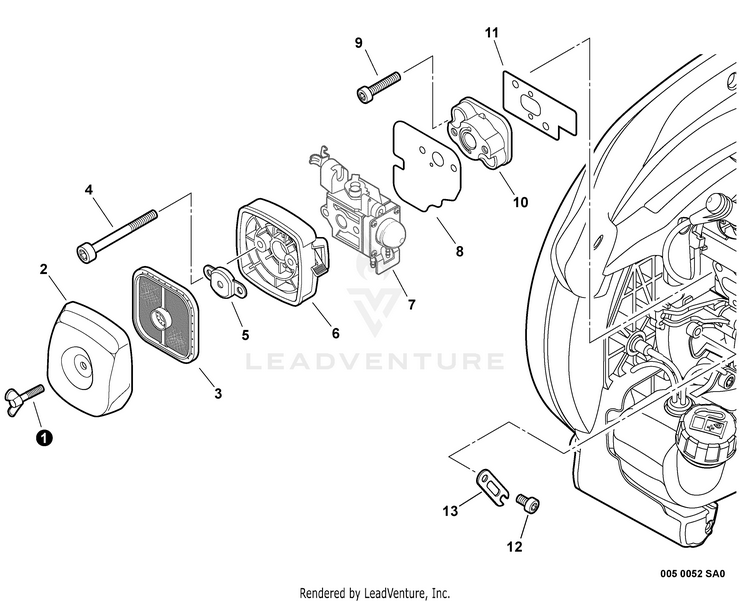

Intake

...
...
1
BOLT, WING 5x20 ECH-21041752730
...
2
COVER, AIR FILTER - BLACK ECH-13031305863
...
3
FILTER, AIR - DOUBLE LAYER ECH-A226001410
...
4
BOLT, TORX 5x65 ECH-V805000100
...
5
PLATE, PREVENT ECH-12901152730
...
6
CASE, AIR FILTER ECH-P021049750
...
7
CARBURETOR See Carburetor Diagram For Details ECH---
...
8
GASKET, INTAKE ECH-V103000400
...
9
BOLT, TORX 5x25 ECH-V805000220
...
10
INSULATOR, INTAKE ECH-A200000960
...
11
GASKET, INTAKE ECH-V103000540
...
12
BOLT, TORX 5x8 ECH-V805000120
...
13
PLATE, EYE ECH-V150002400
