Echo PB-252 S/N: P35720001001 - P35720999999 Handheld Blower

Model: PB-252 S/N: P35720001001 - P35720999999

Back To Assemblies

Save Part Not Listed?
product name

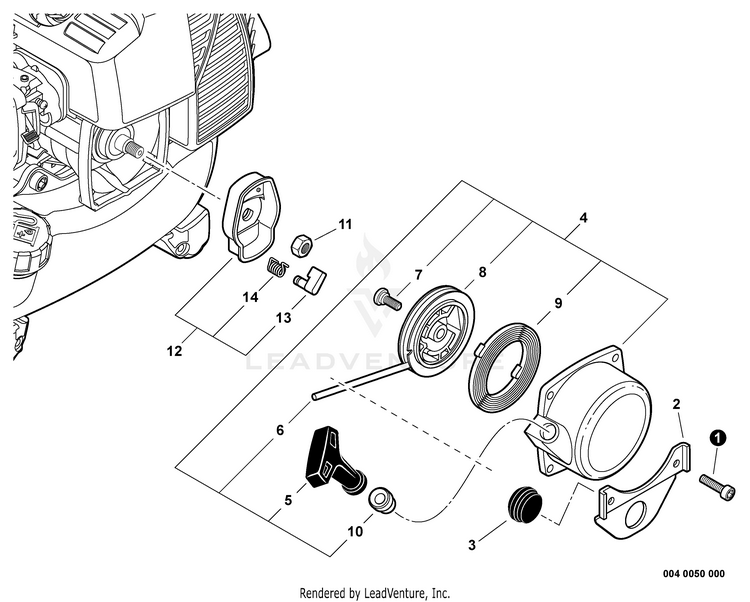

Starter

...
...
1
BOLT, TORX 4x16 ECH-V804000060
...
2
BRACKET, FUEL TANK ECH-V152002220
...
3
CUSHION ECH-V420005680
...
4
STARTER ASSY, RECOIL Includes ITEMS 5-10 ECH-A051000961
...
5
GRIP, STARTER ECH-17722806530
...
6
ROPE, STARTER 3.0x1000 RePower BULK OPTION: 99944440000 ECH-17722610120
...
7
SCREW ECH-17723644330
...
8
REEL, ROPE ECH-P022019691
...
9
SPRING, RECOIL ECH-P022019680
...
10
GUIDE, ROPE ECH-17722742030
...
11
NUT ECH-90059500008
...
12
PAWL ASSY, STARTER Includes ITEMS 13-14 ECH-A052000280
...
13
PAWL, STARTER - BLACK ECH-17721844330
...
14
SPRING, RETURN ECH-17723412220
