Echo PB-252 S/N: P35720001001 - P35720999999 Handheld Blower

Model: PB-252 S/N: P35720001001 - P35720999999

Back To Assemblies

Save Part Not Listed?
product name

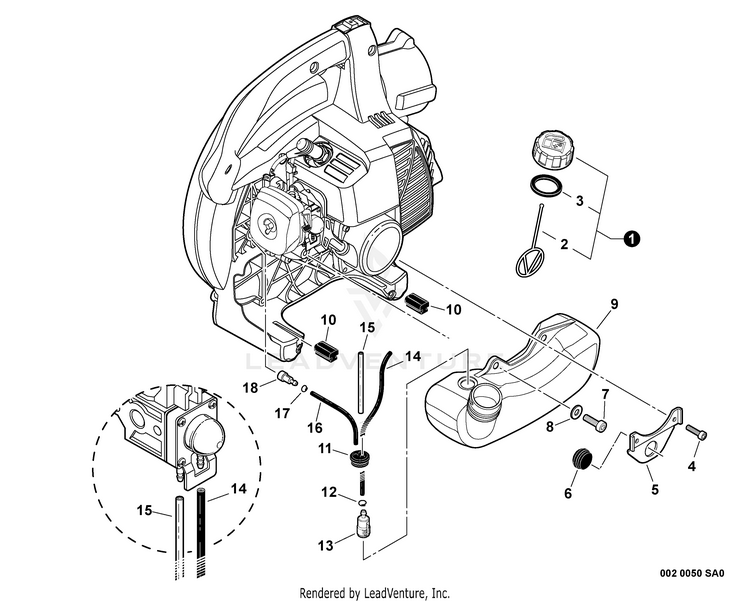

Fuel System

...
...
1
ASSY, FUEL CAP, ORANGE Includes ITEMS 2-3 ECH-P100014810
...
2
CONNECTOR, CAP L= 100 MM ECH-13105156030
...
3
GASKET, FUEL CAP ECH-V107000230
...
4
BOLT, TORX 4x16 ECH-V804000060
...
5
BRACKET, FUEL TANK ECH-V152002220
...
6
CUSHION ECH-V420005680
...
7
BOLT, TORX 5x16 ECH-V805000150
...
8
WASHER 5.5x12x0.8 ECH-90060300005
...
9
TANK ASSY, FUEL ECH-A350002541
...
10
CUSHION ECH-35133520560
...
11
GROMMET, FUEL 5 ECH-13211546730
...
12
CLIP 6 ECH-V490001240
...
13
FILTER, FUEL ECH-A369000480
...
14
PIPE, FUEL 3x5x210 BLACK RePower BULK OPTION: 90014 ECH-V471001231
...
15
PIPE, FUEL 3x6x85 YELLOW RePower BULK OPTION: 90017 ECH-V471006070
...
16
PIPE, FUEL 3x5x80 BLACK RePower BULK OPTION: 90015 ECH-13201204632
...
17
CLIP 6 ECH-V490001240
...
18
VENT ASSY ECH-A356000031
