Echo PB-1010 S/N: 242732 - 999999 Handheld Blower

Model: PB-1010 S/N: 242732 - 999999

Back To Assemblies

Save Part Not Listed?
product name

Ignition, Starter

...
...
1
COIL, IGNITION ECH-A411000021
...
2
PIPE ECH-15661105060
...
3
CAP, SPARK PLUG ECH-15901201620
...
4
TERMINAL, SPARK PLUG ECH-15901103432
...
5
SPARK PLUG - BPMR7A ECH-15901010230
...
5
SPARK PLUG - BPMR7A CANADA MODEL ECH-15901010230
...
6
BUSHING ECH-15011205060
...
7
FLYWHEEL ECH-15880020560
...
8
HUB, FAN ECH-20001105661
...
9
SCREW 4x22 ECH-90023804022
...
10
PAWL ASSY, STARTER Includes ITEMS 12-14 ECH-17720212220
...
12
CATCHER, PAWL NOT AVAILABLE SEPARATELY ECH---
...
13
SPRING, RETURN ECH-17723412220
...
14
PAWL, STARTER - BLACK ECH-17721844330
...
15
STARTER ASSY, RECOIL Includes ITEMS 16-23 ECH-17720042033
...
16
SCREW ECH-17723640630
...
17
WASHER 5 ECH-V303000230
...
18
REEL, ROPE ECH-17721544430
...
19
SPRING, RECOIL ECH-P022019680
...
20
CASE, RECOIL STARTER ECH-17723242032
...
------------------
ROPE, STARTER 3.0×1000 RePower BULK OPTION: 99944440000 ECH---
...
22
GUIDE, ROPE ECH-17722742030
...
23
GRIP, STARTER ECH-17722806530
...
24
SCREW 4x18 ECH-90023804018
...
25
LABEL - ECHO ECH-X502000320
...
26
SWITCH, ON-OFF ECH-16340003460
...
27
LEAD - GROUND ECH-16201006860
...
28
LEAD - GROUND ECH-16201006860
...
xx
BULK STARTER ROPE - 3.0 MMx61 M ECH-99944440000

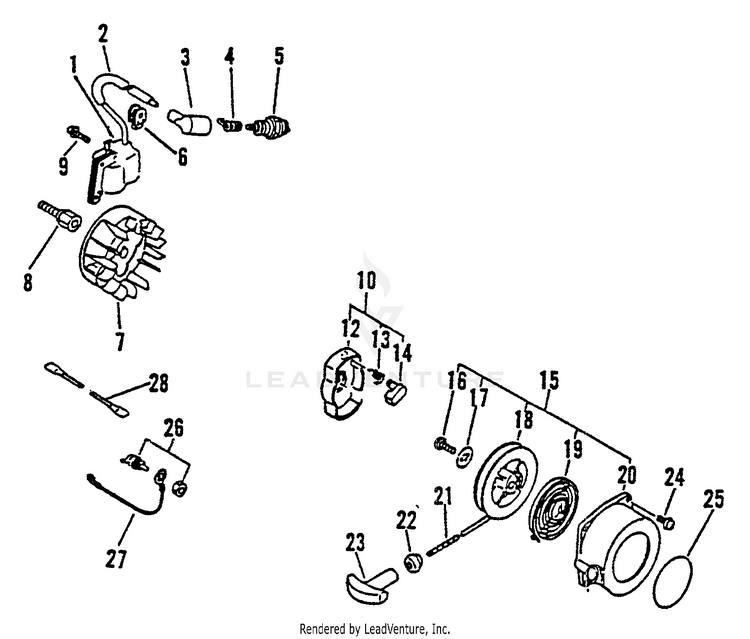

Schematic Image Zoomed
