Echo PB-1010 S/N: 242732 - 999999 Handheld Blower

Model: PB-1010 S/N: 242732 - 999999

Back To Assemblies

Save Part Not Listed?
product name

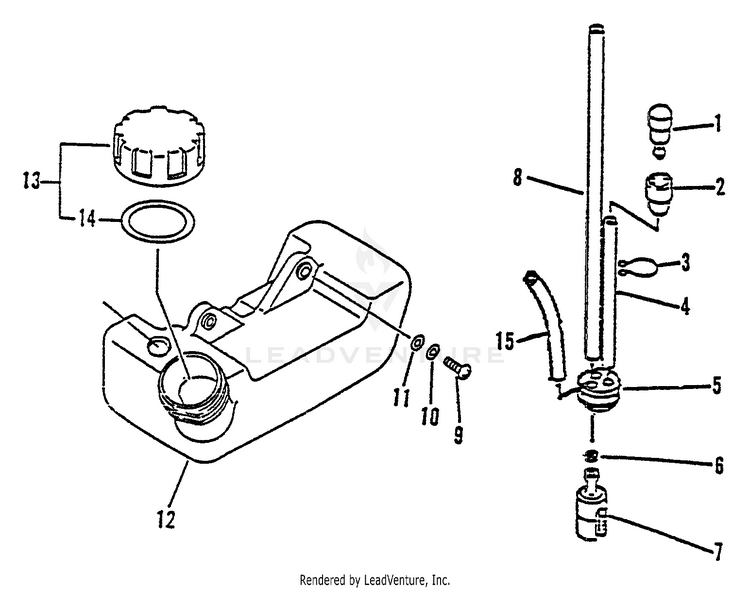

Fuel System

...
...
1
VENT ASSY ECH-13130056431
...
2
HOLDER, VENT ECH-13132840630
...
3
CLIP, TUBE ECH-13201305060
...
4
GROMMET, FUEL 5 RePower BULK OPTION: 90014 ECH-13211546730
...
5
GROMMET, FUEL 5 ECH-13211546730
...
6
CLIP 6 MM ECH-13201309820
...
7
FILTER, FUEL ECH-A369000480
...
8
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001190
...
9
SCREW 5x16 ECH-90023805016
...
10
WASHER, SPRING 5 ECH-90060500005
...
11
WASHER 5.5x12x0.8 ECH-90060300005
...
12
TANK, FUEL ECH-13100505761
...
13
FUEL CAP ASSY Includes ITEM 14 ECH-P200000830
...
14
GASKET, FUEL CAP ECH-13101640930
...
15
PIPE, RETURN, FUEL, 3X6X90 RePower BULK OPTION: 90017 ECH-V471006160
