Echo PB-1010 S/N: 122636 - 219000 Handheld Blower

Model: PB-1010 S/N: 122636 - 219000

Back To Assemblies

Save Part Not Listed?
product name

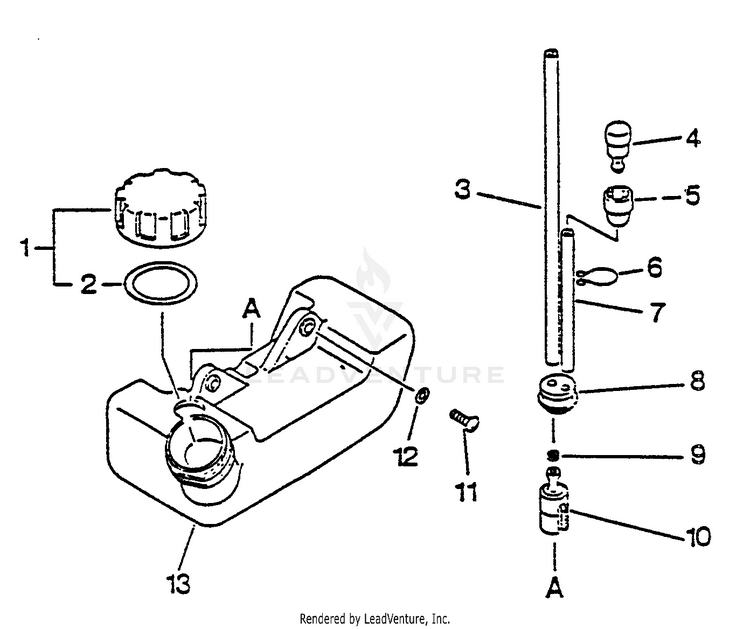

Fuel System

...
...
1
FUEL CAP ASSY Includes ITEM 2 ECH-P200000830
...
2
GASKET, FUEL CAP ECH-13101640930
...
3
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001190
...
4
VENT ASSY ECH-13130056431
...
5
HOLDER, VENT ECH-13132840630
...
6
CLIP, TUBE ECH-13201305060
...
7
PIPE, FUEL RETURN 3x6x70 RePower BULK OPTION: 90017 ECH-13271750430
...
8
GROMMET, FUEL ECH-13211544331
...
9
CLIP 6 MM ECH-13201309820
...
10
FILTER, FUEL ECH-A369000480
...
11
SCREW 5x16 ECH-90023805016
...
12
WASHER 5.5x12x0.8 ECH-90060300005
...
13
TANK, FUEL ECH-13100505761
