Echo PB-1010 S/N: 122636 - 219000 Handheld Blower

Model: PB-1010 S/N: 122636 - 219000

Back To Assemblies

Save Part Not Listed?
product name

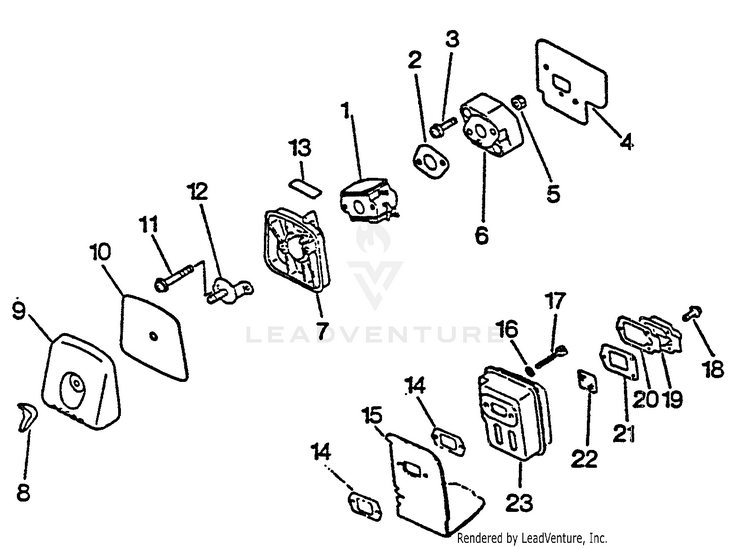

Intake, Exhaust, Air Cleaner

...
...
1
CARBURETOR ECH-12520006361
...
2
GASKET, INTAKE ECH-13001642031
...
3
SCREW 5x22 ECH-90023805022
...
4
GASKET, INTAKE ECH-13001005062
...
5
NUT M5 ECH-90050000005
...
6
INSULATOR, INTAKE ECH-13001705062
...
7
CASE, AIR FILTER ECH-13030705361
...
8
WINGNUT - 6 ECH-90052800005
...
9
COVER, AIR FILTER ECH-13031305060
...
10
FILTER, AIR ECH-13031004560
...
11
SCREW 5x64 ECH-90024205064
...
12
PLATE, PREVENT ECH-12901105060
...
13
LABEL - CHOKE ECH-89012112331
...
14
GASKET, EXHAUST ECH-V104000160
...
15
COVER, MUFFLER ECH-14587105760
...
16
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
17
BOLT 5x55 ECH-90010505055
...
18
SCREW 4x10 ECH-90024204010
...
19
GUIDE, EXHAUST ECH-14587605061
...
20
GUIDE, EXHAUST ECH-14587642030
...
21
GASKET, EXHAUST ECH-14586642031
...
22
SCREEN, SPARK ARRESTER ECH-14586240630
...
23
MUFFLER ECH-14581044330
