Echo PB-1010 S/N: 122636 - 219000 Handheld Blower

Model: PB-1010 S/N: 122636 - 219000

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

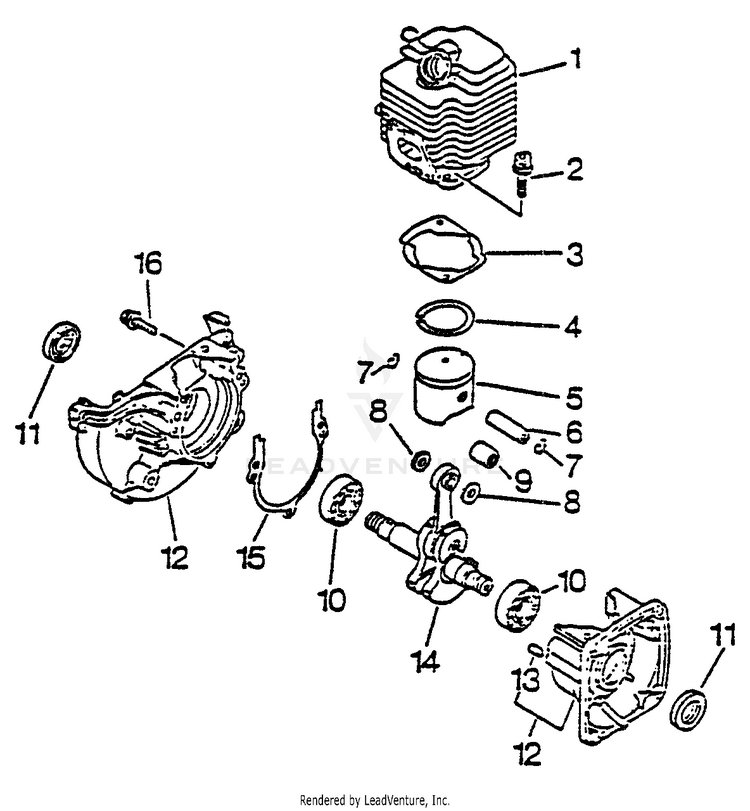

Engine, Crankcase

...
...
1
CYLINDER ECH-10101145230
...
2
BOLT 5x22 ECH-90016205022
...
3
GASKET, CYLINDER ECH-10101044332
...
4
RING, PISTON ECH-10001105330
...
5
PISTON KIT ECH-10000044331
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER, THRUST ECH-10001411520
...
9
BEARING, NEEDLE 8 ECH-V553000010
...
10
BEARING, BALL 6201 ECH-9403536201
...
11
SEAL, OIL 12 ECH-10021242031
...
12
CRANKCASE KIT Includes ITEMS 13-15 ECH-10020451031
...
13
PIN, LOCATING 4 ECH-V622000020
...
14
CRANKSHAFT ASSY ECH-A011001410
...
15
GASKET, CRANKCASE Use Gasket Kit P/N 88900005062 ECH---
...
16
SCREW 5x28 ECH-90023805028
...
xx
GASKET KIT OPTIONAL ECH-88900005065
