Echo PB-1010 S/N: 122636 - 219000 Handheld Blower

Model: PB-1010 S/N: 122636 - 219000

Back To Assemblies

Save Part Not Listed?
product name

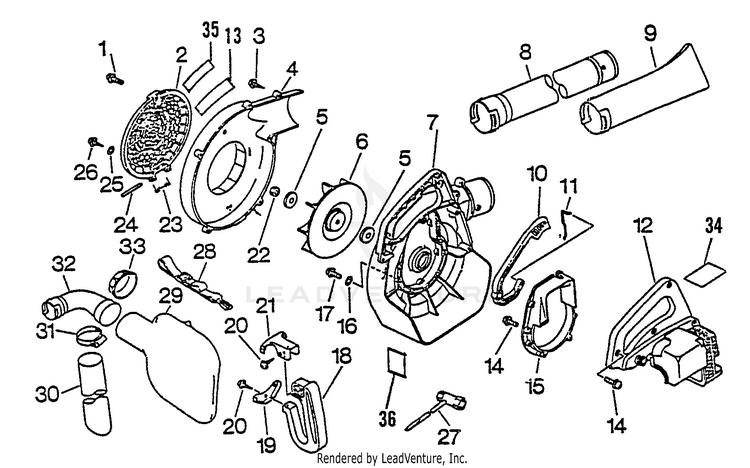

Fan, Housings, Blowing Pipes, Debris Bag, Handles, Cover, Tools

...
...
1
THUMBSCREW ECH-V299000650
...
2
SHIELD, DEBRIS ECH-20012405061
...
3
SCREW, TAPPING 5x20 ECH-90025305020
...
4
COVER, FAN - LEFT ECH-20011108761
...
5
WASHER ECH-10013205660
...
6
FAN ECH-20001006363
...
7
COVER, FAN - RIGHT ECH-20011006360
...
8
TUBE, BLOWER - STRAIGHT ECH-21001505060
...
9
NOZZLE - FAN HEAD ECH-21003105060
...
10
TRIGGER, THROTTLE ECH-17801006360
...
11
ROD, THROTTLE ECH-17801105060
...
12
COVER, ENGINE ECH-10400806360
...
13
LABEL - MODEL ECH-89011806360
...
14
SCREW 4x18 ECH-90023804018
...
15
BRACKET, ENGINE ECH-10493005061
...
16
WASHER ECH-10403205060
...
17
SCREW 4x22 ECH-90023804022
...
18
HANDLE ECH-35101005060
...
19
BRACKET, LOWER HANDLE ECH-35102805060
...
20
SCREW 5x14 ECH-90025305014
...
21
BRACKET, UPPER HANDLE ECH-35101105060
...
22
NUT M8 ECH-90050000008
...
23
SPRING, COIL ECH-20015205060
...
24
PIN, INTAKE COVER ECH-20015005060
...
25
WASHER ECH-10403205060
...
26
SCREW 5x14 ECH-90024605014
...
27
T-WRENCH 13x19x180 ECH-89541006961
...
28
HARNESS ECH-30100505060
...
29
BAG, DUST ECH-88081405060
...
30
COVER, FAN - LEFT - GRAY ECH-P021009410
...
31
CLAMP ECH-21041305060
...
32
ELBOW ECH-21501205060
...
33
RING ECH-21501301961
...
34
LABEL - CAUTION - HOT ECH-89019403360
...
35
LABEL - NOISE Not used on this model ECH---
...
36
LABEL - CAUTION - HOT ECH-X505002310
