Echo PB-1010 S/N: 122636 - 219000 Handheld Blower

Model: PB-1010 S/N: 122636 - 219000

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

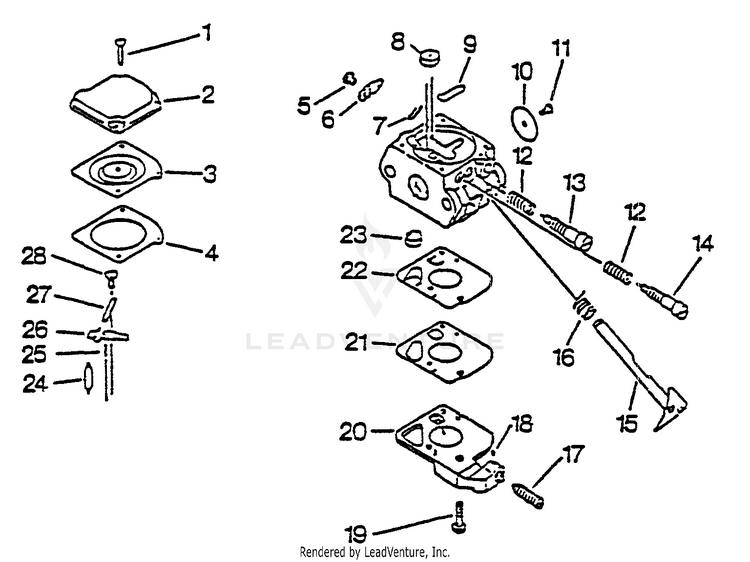

Carburetor

...
...
xx
CARBURETOR ECH-12520006361
...
1
SCREW ECH-12534413931
...
2
COVER, METERING DIAPHRAGM ECH-12534252130
...
3
DIAPHRAGM Included in Carburetor Repair Kit P/N 12530042030 And Carburetor Diaphragm/Gasket Kit P/N 12530342030 ECH---
...
4
GASKET, METERING Included in Carburetor Repair Kit P/N 12530042030 And Carburetor Diaphragm/Gasket Kit P/N 12530342030 ECH---
...
5
SCREW ECH-12534813930
...
6
LEVER, THROTTLE ECH-12535005060
...
7
CLIP ECH-125327-13930
...
8
NOZZLE, CHECK VALVE ECH-12537606360
...
9
PLUG, WELCH Included In carburetor Repair Kit P/N 12530042030 ECH---
...
10
VALVE, THROTTLE ECH-12531642030
...
11
SCREW Included In carburetor Repair Kit P/N 12530042030 ECH---
...
12
SPRING, COIL ECH-125319-42030
...
13
NEEDLE, HIGH SPEED ECH-12532042030
...
14
NEEDLE, IDLE ECH-125318-42030
...
15
SHAFT, THROTTLE ECH-12531705060
...
16
SPRING, THROTTLE RETURN ECH-12531342030
...
17
SCREW, IDLE ADJUST ECH-12533413930
...
18
PIECE, FRICTION ECH-12537813930
...
19
SCREW ECH-12531042030
...
20
COVER, PUMP ECH-12532442030
...
------------------
GASKET, PUMP Included in Carburetor Repair Kit P/N 12530042030 and Carburetor Diaphragm/Gasket Kit P/N 12530342030 ECH---
...
------------------
DIAPHRAGM, PUMP Included in Carburetor Repair kit P/N 12530042030 and Carburetor Diaphragm/Gasket Kit P/N 12530342030 ECH---
...
23
STRAINER Included in Carburetor Repair kit P/N 12530042030 ECH---
...
24
VALVE, NEEDLE Included in Carburetor Repair kit P/N 12530042030 ECH---
...
25
SPRING Included in Carburetor Repair kit P/N 12530042030 ECH---
...
26
LEVER, METERING Included in Carburetor Repair kit P/N 12530042030 ECH---
...
27
PIN, METERING LEVER Included in Carburetor Repair kit P/N 12530042030 ECH---
...
28
SCREW ECH-12533942030
...
xx
REBUILD KIT Includes ITEMS 3, 4, 8, 9, 11, 21-27 ECH-12530042030
...
xx
GASKET / DIAPHRAGM KIT Includes ITEMS 3, 4, 21-22 ECH-12530342030
...
xx
GASKET KIT (Includes items below) ECH-89000005062
...
xx
GASKET, INTAKE ECH-13001005062
...
xx
GASKET, INTAKE ECH-13001642031
...
xx
GASKET, EXHAUST ECH-14586642031
...
xx
GASKET, EXHAUST ECH-V104000160
...
xx
GASKET, CRANKCASE NOT AVAILABLE SEPARATELY ECH---
...
xx
GASKET, CYLINDER ECH-10101044332
...
xx
COVER, MUFFLER ECH-14587105760
